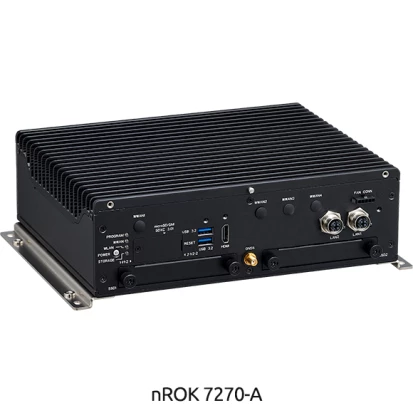

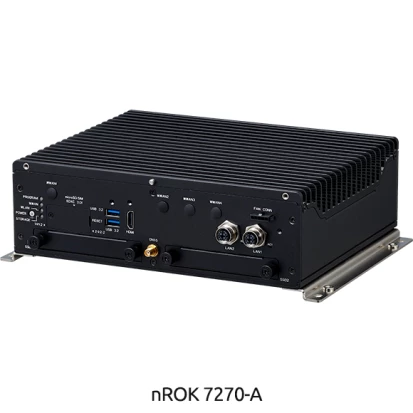

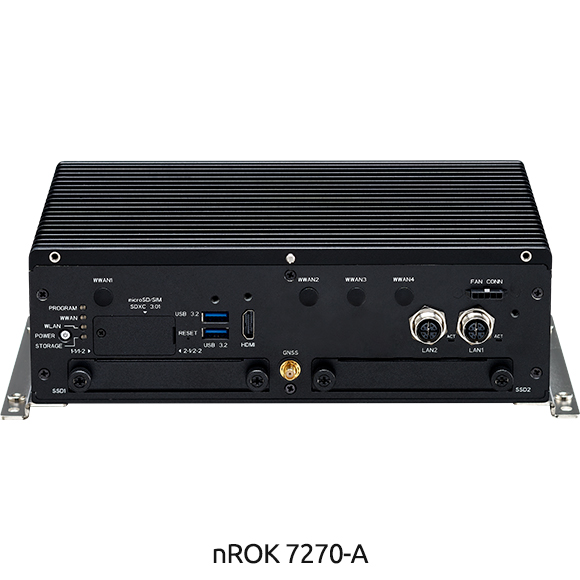

nROK-7270-A
NEXCOM
SKU: 11146100
Embedded Railway PC, Intel 12/13th Gen Core i3/i5/i7/i9 CPU, R680E, Up to 64GB DDR5 ECC RAM, VGA/HDMI, 2xUSB 3.2, 2xCOM, M12 (2x2.5GbE LAN, 2xUSB, DC-in), DB15 (CAN/DIO), MicroSD, Audio, 2x2.5" Bay, 1xMini-PCIe, 2xM.2 Key-B, 1xM.2 Key-E, 24/36VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Digital Input
Isolation DIO
Yes
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
2
RAID Levels
1
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B, 3050 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 4
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED, WLAN LED, SSD LED
Controls
On/Off
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xUSB, SIM Card Slot, 1xDB15 DIO, DB15 CAN Bus, M12 USB, MicroSD card slot, M12 DC-in, 2xM12 LAN, M8 Audio
System Power Input
Input Voltage DC
14..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
260 mm
Height
80 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-35..70 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Rolling Stock
EN 50155, EN 45545
Automotive
e13 Mark
Dimensions
Net Weight
5.36 kg
Gross Weight
7 kg
