VTC-7260-5HCIoT

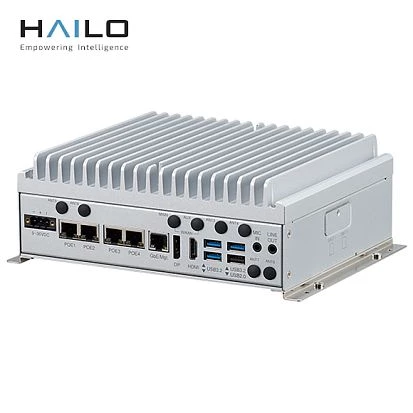

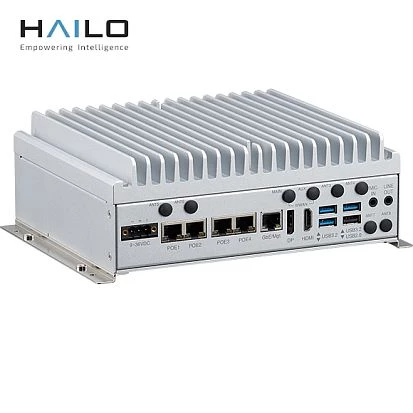

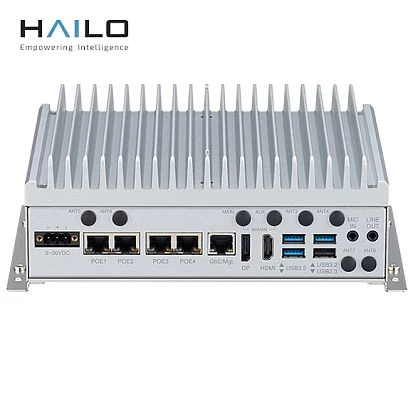

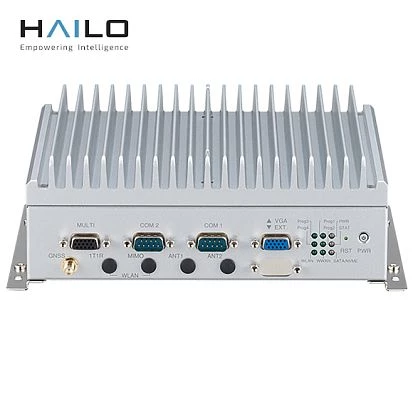

VTC-7260-5HCIoT

NEXCOM
SKU: 57826100
Vehicle Computer, Intel 11th gen Core i5-1145GRE CPU, up to 64GB DDR4 RAM, VGA, DP, HDMI, 4x2.5GbE PoE+ LAN, 1xGbE LAN, 4xUSB, 2xCOM, 1x8-bit DIO, 1x2.5" Drive Bay, 1xmSATA, GPS, 2xSIM, 3xM.2, 1xCAN, 9..36VDC-in, -30..65C Wide temp.
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145GRE
Socket
FCBGA 1449
CPU Support Type
Core i5
Max CPU frequency
4.1 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel Iris Xe Graphics
Interfaces
DisplayPort, HDMI, VGA
Ethernet
Controller Type
Intel i225IT
Total Ethernet
5
10/100/1000 Mbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
3
USB v3.x
3
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
1
M.2
1
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
5
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2, Micro-SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 5xRJ45 Ethernet, 4xUSB, Mic In, Line Out, Display Port, DC input (terminal block), 2xSIM Card Slot
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Ubuntu 18.04 LTS, Windows 11
Dimensions and weight
Width
210 mm
Height
75 mm
Depth
173 mm
Operating Conditions
Operating Temperature
-30..65 °C
Humidity
10-95%
Vibration
MIL-STD-810H, 514.8C Procedure 6, Category 4; IEC 60068-2-64: 2.0g@5~500Hz
Shock
MIL-STD-810G, 516.6 Procedure I, trucks and semi-trailers=40g; Crash hazard: Procedure V, ground equipment=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Vehicle
E-Mark
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145GRE
Socket
FCBGA 1449
