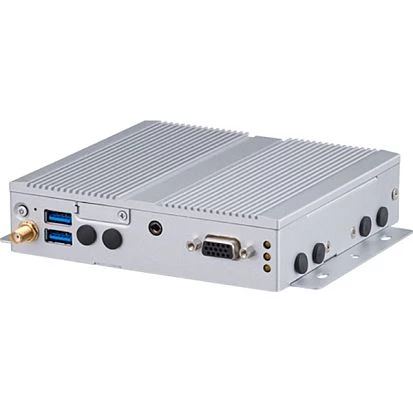

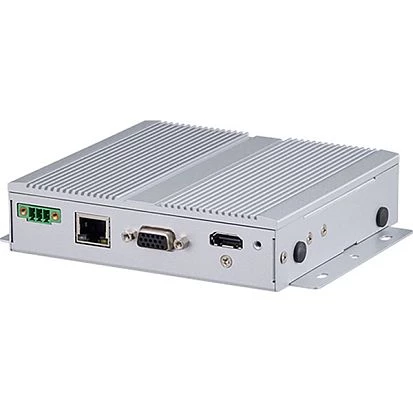

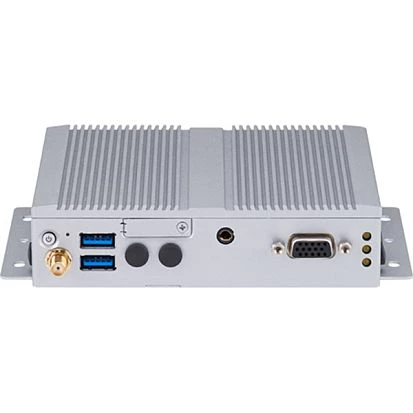

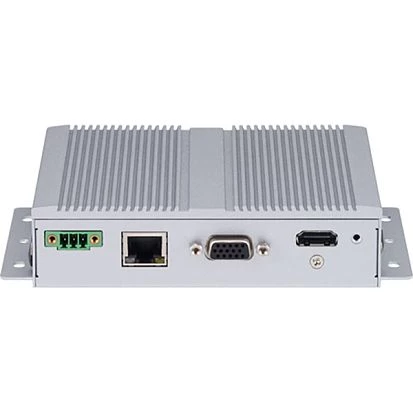

VTC-1920
NEXCOM
SKU: 57876100
Embedded Server, Intel Atom x7211RE CPU, Up to 16GB (Default 4GB) DDR4 RAM, 1xHDMI, 1x2.5GbE LAN, 3xCOM, 2xUSB 3.2, 1xDB15 (2xCAN, 1xDR, 1xAnalog), Audio, 1xMini-PCIe, 1xM.2 3042/52, 1xM.2 2230, 1xM.2 2242, 2xSIM, GPS, TPM 2.0, 9-36VDC-in, -40..70C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Socket
FCBGA1264
Max CPU frequency
3.2 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
HDMI
Ethernet
Total Ethernet
1
2,5 Gbit/s
1
Interfaces
COM Total
3
RS-232
2
RS-485
1
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
6
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2242 M, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
Controls
On/Off
Connectors
Connectors
HDMI, RJ45 Ethernet, 2xUSB, Mic In, Line Out, DC input (terminal block), DB15 CAN Bus, DB15 (COM+GPIO), 2xSIM Card Slot
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x, Windows 11
Dimensions and weight
Width
130 mm
Height
32 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-95%
Vibration
IEC 60068-2-64, 2G - Operating: MIL-STD-810H, 514.8C Procedure 1, Category 4 - Storage: MIL-STD-810H, 514.8E Procedure 1, Category 24
Shock
MIL-STD-810H, 516.8 Procedure I, trucks and semi-trailers=40g - Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
0.6 kg
Gross Weight
0.9 kg
