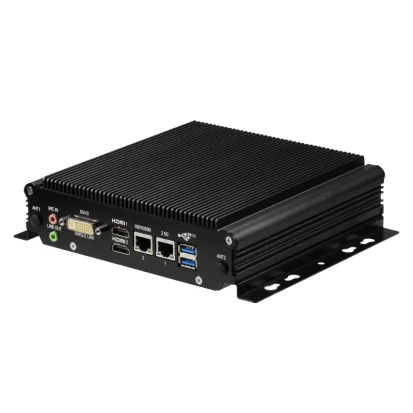

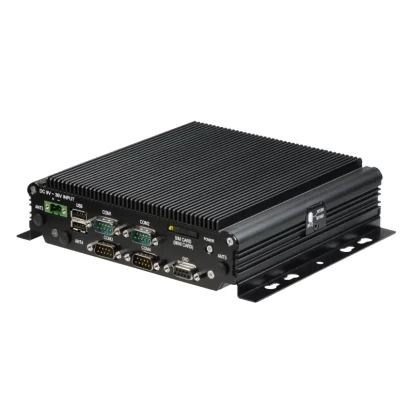

SBOX-2622-Series
SINTRONES
SKU: 57871700
Embedded Vehicle PC, Intel 11th Gen Core i7/i5/i3/Celeron CPU, Up 32GB DDR4 RAM, 2xHDMI/DVI-D, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 2xUSB 2.0, 2xUSB 3.2, 8-bit DIO, Audio, 3xSIM, 1xM.2 3052/42, 1xM.2 2230, 1xM.2 2280, 1xMiniPCIe, 9..36VDC-In, -30..60C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Socket
FCBGA 1449
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel Iris Xe Graphics, Intel UHD Graphics
Interfaces
DVI-D, 2xHDMI
Ethernet
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
Controls
On/Off
Connectors
Connectors

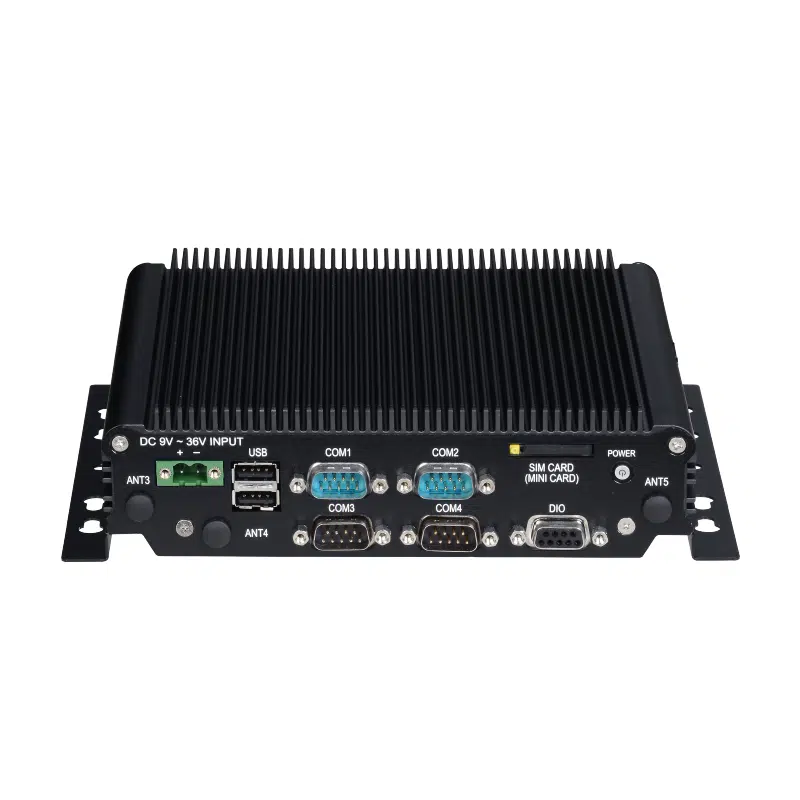

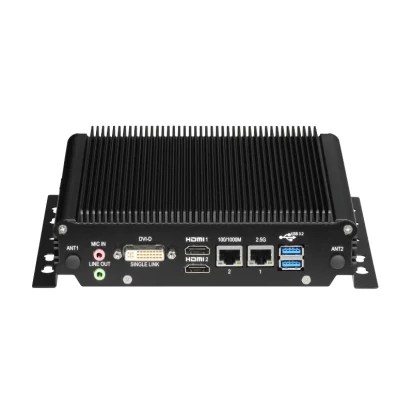

4xDB9, DVI-D, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, SIM Card Slot, DC input (terminal block), DB9 DIO
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 11, Ubuntu 20.04
Dimensions and weight
Width
210 mm
Height
50 mm
Depth
171 mm
Operating Conditions
Operating Temperature
-30..60 °C
Dimensions
Net Weight
1.75 kg
Gross Weight
2.15 kg
