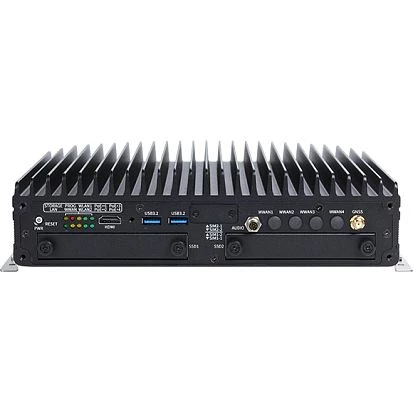

nROK-6232-AC4S
NEXCOM
SKU: 80072800
Fanless Railway PC, Intel Atom x7433RE CPU, 8GB DDR5 RAM, 64GB eMMC, HDMI, VGA, 4xM12 PoE LAN, 1xM12 LAN, 2xUSB 3.2, 2xUSB 2.0 (M12), 2xCOM, 2xMultiport for 2xCOM/CAN/DIO, GPS, 2x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, 24V/36VDC-in, -40..70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Type
Fanless
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7433RE
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
5
2,5 Gbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232
1
RS-422/485
1
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 4, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
PoE+ LED, WLAN LED, LAN LED, WWAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, DB15 VGA, HDMI, 2xUSB, M12 DC-in, M8 Audio, 5xM12 PoE, 1xM12 A-code USB, 2xDB15 Multi-port
System Power Input
Input Voltage DC
24..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
260 mm
Height
66.5 mm
Depth
196 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Rolling Stock
en_50121, EN 50155, EN 50121-3-2, EN 45545-2
Vibration And Shock
EN 61373 Category 1 Class B
Dimensions
Net Weight
3.4 kg
Gross Weight
4 kg
