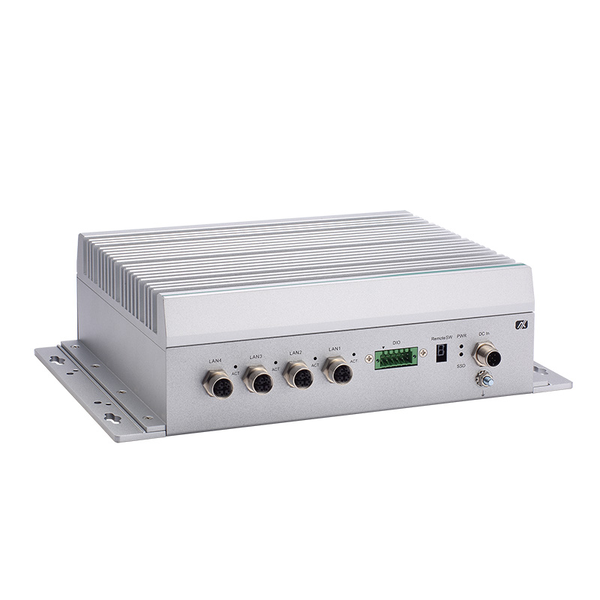

tBOX210-RLS-MR
AXIOMTEK
SKU: 80372800
Embedded Railway PC, EN50155, Intel 14/13th Gen Core i9/i7/i5/i3/Celeron CPU, Up to 32GB DDR5 RAM, HDMI, 1x2.5GbE LAN, 4x2.5GbE M12 LAN, 2xUSB 3.2, DIO, 2x2.5" Bay (RAID 0/1), 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 24-110VDC-in M12
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Processor Installed
Options Available – Contact Sales
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Chipset
Chipset
Intel Q670E
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
5
2,5 Gbit/s
5
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
SATA 3
2
RAID Levels
0, 1
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B
Mini-PCIe/Mini Card
1
SIM Card slots
2, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
Optional
LED / Controls
LED
Power LED, SSD LED
Connectors
Connectors
HDMI, RJ45 Ethernet, 2xUSB, DIO (terminal block), 2xSIM Card Slot, M12 DC-in, 4xM12 LAN
System Power Input
Input Voltage DC
24..110 V
Power Ignition Control
Yes
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise, Ubuntu 22.04
Dimensions and weight
Width
300.6 mm
Height
81 mm
Depth
182.4 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Rolling Stock
EN 50155, EN 50121-3-2, EN 45545-2
Safety
EN 62368-1 (LVD)
Vibration And Shock
EN 61373 Category 1 Class B
Dimensions
Net Weight
4.2 kg
Gross Weight
5 kg
