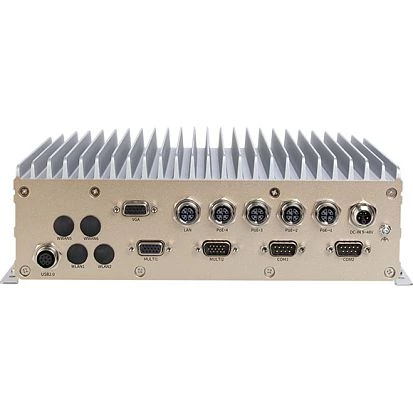

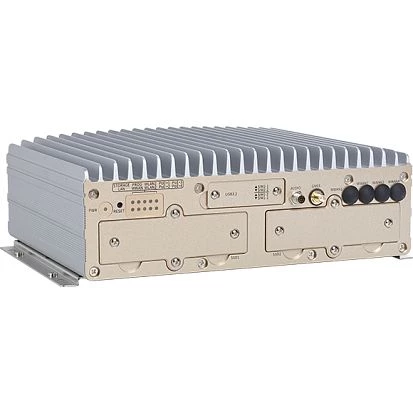

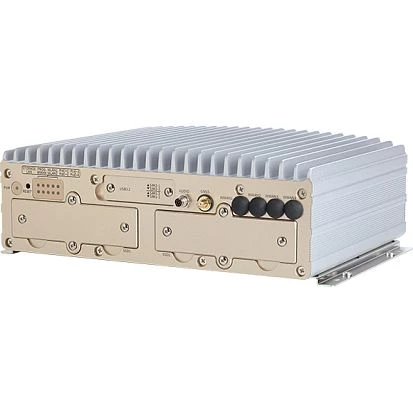

VTC-6232-C4SIP
NEXCOM
SKU: 80074000
In-Vehicle PC VTC-6232, Intel Atom x7433RE 1.5GHz CPU, 8GB DDR5 RAM, 64GB eMMC, VGA, 5x2.5GbE M12 (4xLAN/1xPoE), 2xUSB 3.2, 2xUSB 2.0 M12, 2xCOM, 2xDB15 (2xCOM/DIO/CAN), GPS, 2x2.5" Bay, 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, 9-48VDC M12, -40..70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP66
Type
Fanless
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7433RE
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
VGA
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
5
2,5 Gbit/s
1
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232
1
RS-422/485
1
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
SATA 3
2
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 4, Nano SIM
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
PoE+ LED, WLAN LED, LAN LED, WWAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, DB15 VGA, 2xUSB, M12 DC-in, M8 Audio, 5xM12 PoE, 1xM12 A-code USB, 2xDB15 Multi-port
System Power Input
Input Voltage DC
9..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
260 mm
Height
86.5 mm
Depth
201.6 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Dimensions
Net Weight
3.2 kg
Gross Weight
4 kg
