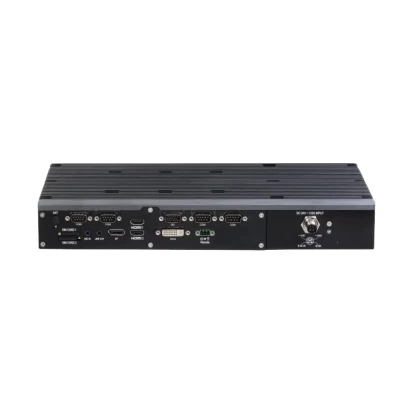

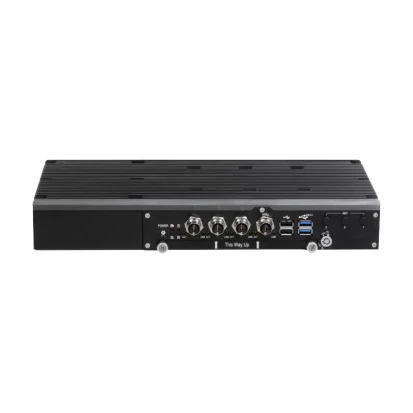

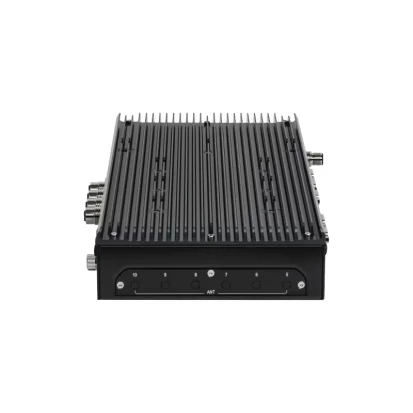

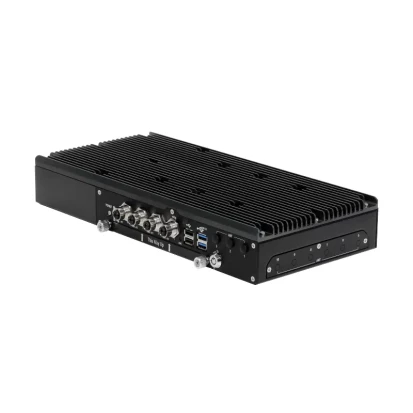

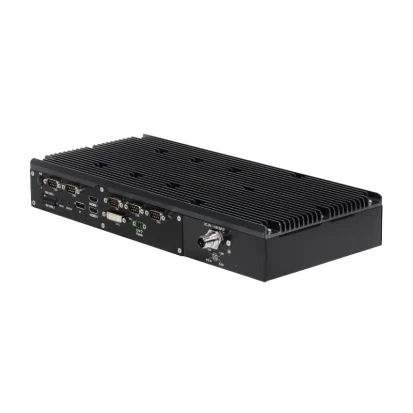

VBOX-3630Rx-M12X-Series
SINTRONES
SKU: 57861400
In-Vehicle Fanless PC, Intel 11th Gen Core i7/i5/i3/Celeron CPU, Up 64GB DDR4 RAM, 2xHDMI/DP/DVI-D, 4xM12 LAN, 4xCOM, 2xUSB 3.2, 2xUSB 2.0, DIO, Audio, 2xSIM, 2xMiniPCIe, 2xM.2 3052/42, 1xM.2 2230, 1xM.2 2280, 2x2.5" Bay, 24..110VDC-In, -40..70C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
Processor Installed
Intel Core i7-1185G7E, Intel Core i5-1145G7E, Intel Core i3-1115G4E, Intel Celeron 6305E
Socket
FCBGA 1449
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, 2xHDMI
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
3
2,5 Gbit/s
1
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
10
Drive interfaces
SATA 3
3
RAID Levels
0, 1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
6
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 2
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DVI-D, 2xHDMI, 4xUSB, Mic In, Line Out, Display Port, 1xDB15 DIO, 4-pin DC input, 2xSIM Card Slot, 4xM12 PoE
System Power Input
Input Voltage DC
24..110 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows IoT Enterprise 10, Windows 11, Ubuntu 20.04
Dimensions and weight
Width
365 mm
Height
55 mm
Depth
165 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-90%
Vibration
IEC 60068-2-64, Random, 2.5G@5~500Hz. 1hr/axis MIL-STD-810G, Method 514.6, Procedure I, Cat.4, Operating
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure, Trucks and semi-trailers=15G (11ms) with SSD
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Dimensions
Net Weight
3.8 kg
Gross Weight
4.4 kg
