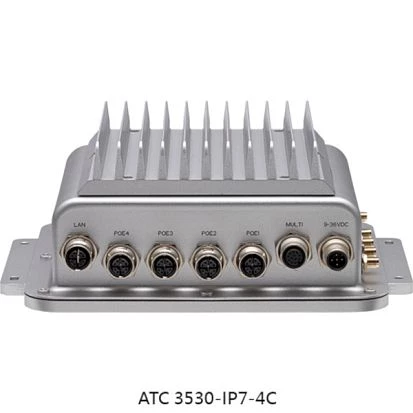

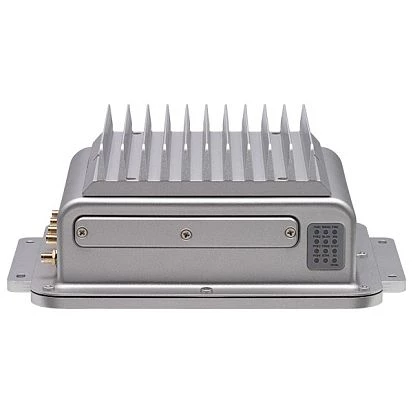

ATC-3530-IP7-4C-16
NEXCOM
SKU: 57432500
Fanless Embedded System with CPU Board GPU NVidia Jetson Xavier NX SOM, 16GB LPDDR4, 16GB eMMC, HDMI, 1xGbE, 4xPoE, 2xUSB3, 1xOTG, 1xM12(2xCOM, 1xCAN), 1xmPCIe, 1xM.2, 2xSIM, SD, GPS, G-sensor, IP-67, 9-36VDC, -30..70C
Price on request
Available
Available
CPU
Processor Installed
NVIDIA Jetson Xavier NX (6-core ARM v8.2 64-bit CPU, 6MB L2 + 4MB L3)
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i210-IT
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB v3.x
2
Industrial Interfaces
CAN Port
1
Drive interfaces
MicroSD
1
Extension Slots
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
2, Micro-SIM
Connectors
Connectors
HDMI, 4xRJ45, 2xUSB, SIM Card Slot, M12, DB15 GPIO, SD card slot
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Linux kernel 4.x
Dimensions and weight
Width
213 mm
Height
82.8 mm
Depth
167 mm
Operating Conditions
Operating Temperature
-30..70 °C
Vibration
MIL-STD-810G, 514.6C, Procedure 3, Category 4 - IEC 60068-2-64: 2.0g@5~500 Hz - MIL-STD-810G, 514.6E, Procedure 1, Category 24, 7.7g approx
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
2.4 kg
Gross Weight
4 kg
