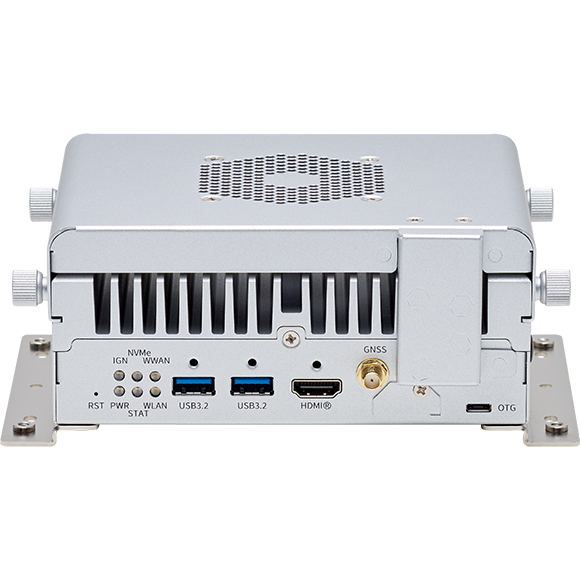

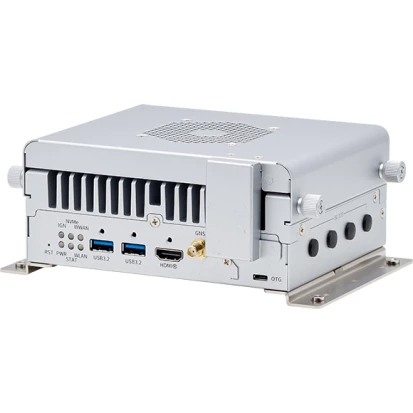

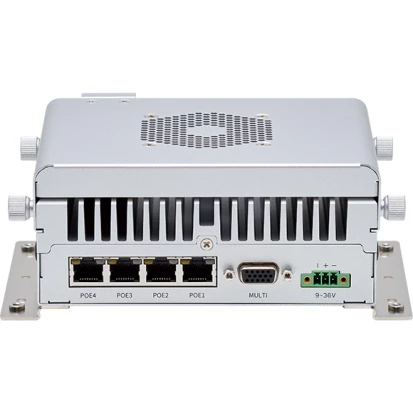

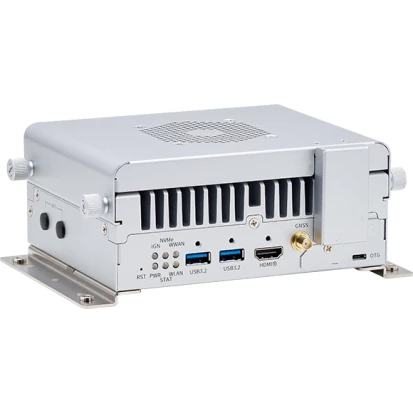

ATC-3561-NX4CF-16
NEXCOM
SKU: 80224500
Edge AI System, Nvidia Jetson Orin Nano 8-Core SoM, Super Mode Fan Kit, Ampere 1024-Core GPU, 16GB LPDDR5 RAM, 128GB NVMe SSD, HDMI, 4xPoE+ LAN, 2xUSB 3.2, OTG, 1xMultiport (8-bit DIO, CAN, COM), 1xMiniPCIe, 1xM.2 Key-B, 1xM.2 Key-E, GPS, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
Processor Installed
Nvidia Jetson Orin NX (8-Core)
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
4
PoE+ 10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
1
RS-232
1
USB Total
3
USB 2.0
1
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 2, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED, WLAN LED, WWAN LED, SSD LED
Controls
1xReset
Connectors
Connectors
HDMI, 4xRJ45 Ethernet, 2xUSB, DC input (terminal block), 1xMicro USB, 2xSIM Card Slot, DB15 Multi-port
System Power Input
Input Voltage DC
9..36 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu 22.04
Operating System Installed
NVIDIA Jetpack 6.2
Dimensions and weight
Width
179.4 mm
Height
70.1 mm
Depth
119 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock, MIL-STD-810H Test Method 514.8 Vibration
Vehicle
E-Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
1.58 kg
Gross Weight
2.35 kg
