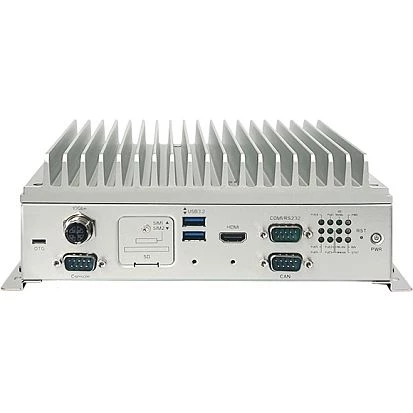

ATC-3750-A6CR
NVIDIA Rugged Telematic AI Embedded PC uses 62 GB eMMC, 32 to 64 GB DDR5 RAM, 1792 CUDA Cores
With an integrated NVIDIA Jetson Orin co-processor delivering up to 275 TOPS of performance and multiple GbE PoE+ ports for peripheral IP devices, the ATC-3750-A6CR positions itself as an efficient, versatile, and high-performance AI embedded PC for mobile or stationary deployments in extreme and weather-dependent environments.
The ATC-3750-A6CR is an AI embedded PC based on the NVIDIA Jetson AGX Orin platform, designed for the high-performance demands of intelligent AI applications and neural network processing. As a processor, the ATC-3750-A6CR in its minimum configuration uses an ARM Cortex-A78AE octa-core CPU with a base clock speed of 2.20 GHz, supported by a total of 1792 CUDA cores as a co-processor. The system is equipped with either 32 GB or 64 GB LPDDR5 RAM, supplemented by 64 GB eMMC flash storage, an NVMe SSD via an M.2 expansion slot, and an optional SD 3.0 card. With one mini card slot and two additional M.2 sockets, the ATC-3750-A6CR offers extensive options for customizing the hardware to meet specific requirements.

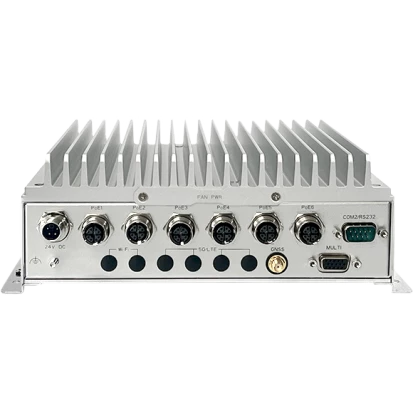

Featuring six RJ45 GbE LAN ports including integrated power supply via Power-over-Ethernet (PoE+ standard), the ATC-3750-A6CR is ideally suited for use in stationary or mobile environments that require the deployment of multiple IP devices, such as for optical surveillance. Additional interfaces of the telematic embedded PC include dual RS232 serial COM, an 8-bit GPIO, and dual CAN Bus 2.0 A/B for integration into vehicle electronics. The ATC-3750-A6CR can be used without limitations in mobile environments and, thanks to its graphical output capabilities on displays or interactive touchscreens with resolutions up to 8K, it also serves as an H2M terminal, kiosk, or infotainment PC.
As a mobile embedded PC, the ATC-3750-A6CR follows a robust rugged design and operates across a very wide temperature range from -25° Celsius to 70° Celsius without active cooling. Its field of application extends from logistics and autonomous driving to assistance systems in public transport, as well as Industry 4.0 tasks or optically controlled quality management.
