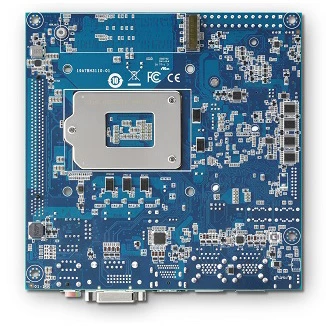

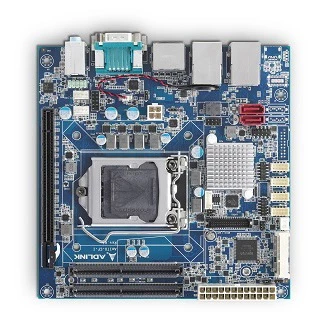

AmITX-CF-I-H310
ADLink
SKU: 09461100
Mini-ITX Embedded board with 8th/9th Gen Intel Core i7/i5/i3/Pentium/Celeron, Intel H310, DDR4, DVI-D, DP, HDMI, 5xCOM, 6xUSB 3.1, 2xUSB 2.0, 4xSATA 6.0 GB/s, PCIe x16, M.2 (2280), MiniPCIe, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
Mini-ITX
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Socket
LGA1151
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, DVI-D, HDMI
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
2
PCI Express x16
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 3, 24-pin ATX, 4x10-pin RS-232, 2x4-pin USB 2.0, GPIO
Connectors
DB9, DVI-D, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line In, Line Out, Display Port
Software
Operating System Compatibility
Linux OS, Ubuntu, Fedora, Windows 10
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Gross Weight
0.5 kg
