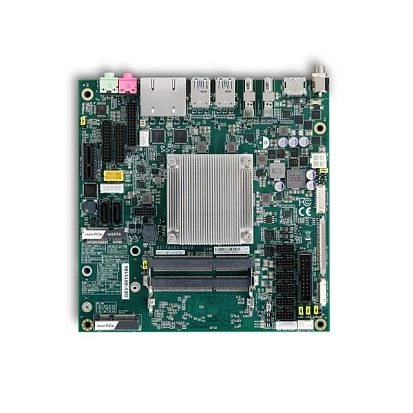

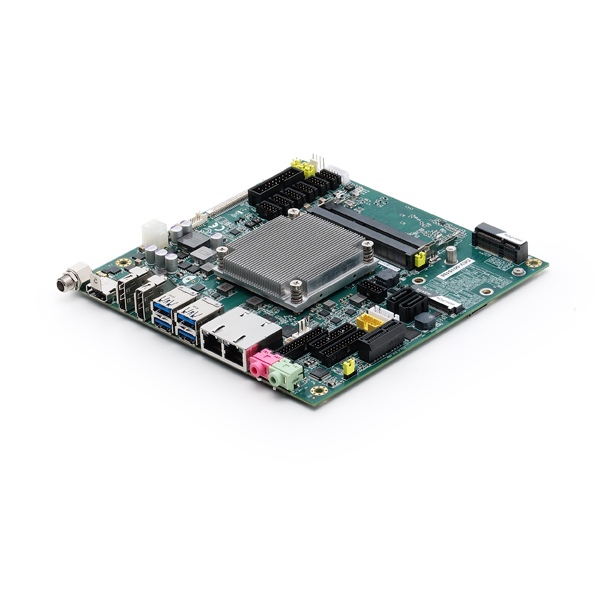

AmITX-BW-I-E8000

AmITX-BW-I-E8000

ADLink
SKU: 07657100
Mini-ITX Embedded Board with Intel Atom x5-E8000 1.04GHz, DDR3L RAM, HDMI/2xDP/LVDS, 2xGbE, 6xCOM, 4xUSB 3.0, 4xUSB 2.0, 1x PCIe x1, 1x Mini PCIe, 1x mSATA, 1x SPI header
Price on request
Available
Available

System Architecture
Form Factor
Mini-ITX
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom x5-E8000
Max CPU frequency
2 GHz
Number of CPU
1
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, 2xDisplayPort
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB 2.0
4
USB v3.x
4
Digital Input-Output
Channels of DIO
10
Audio
Audio Controller
Realtek ALC886
Drive interfaces
mSATA
1
MicroSD
1
Extension Slots
Total
2
SIM Card slots
1
PCI Express x1
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, 2xDisplayPort
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Linux OS, Windows 8.1, Windows 10
Dimensions and weight
Width
170 mm
Length
170 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Gross Weight
0.5 kg
