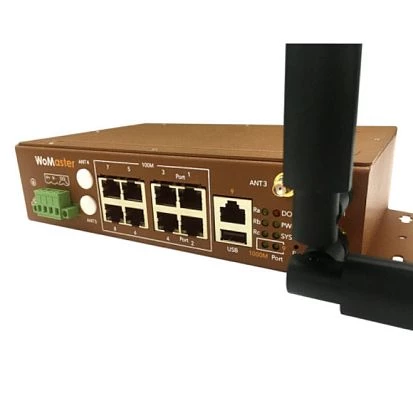

WR319A-LTE-E
WoMaster
SKU: 57697000
LTE IP30 Routing Switch and IoT Gateway, 8-Port 10/100Base-TX LAN, 1-Port 100/1000Base-T WAN, LTE-E, 1xCOM, 1xUSB, 5xSMA, 1xSerial+3DI+2DO, 2xSIM, 8..32VDC, -40..70 C Operating Temperature
Price on request
Available
Available
Ethernet
10/100 Mbit/s
8
10/100/1000 Mbit/s
1
Interfaces
RS-232/422/485
1
Supported Protocols
Protocol Layer 3
VRRP, RIP V1/V2, OSPF
IEEE Standard
IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
3
Digital Output
Total channels of digital output
2
Connectors
Connectors
DB9, RJ45, SIM Card Slot, 5xSMA
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
200 mm
Depth
126 mm
Height
51 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
EN 55024, EN 61000-6-2, EN 61000-6-4, EN 55032
Rolling Stock
EN 50155
Safety
EN 60950-1, EN 62368-1 (LVD)
Dimensions
Net Weight
1.35 kg
Gross Weight
1.65 kg
