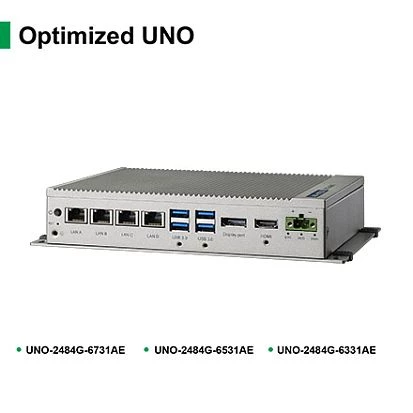

UNO-2484G-6331BE
Advantech
SKU: 10223000
Embedded system w/CPU Intel Core i3-6100U 2.3GHz, 8GB RAM, 4xCOM, 4xGbE LAN, 4xUSB3.0, 1x mPCIe, -20...+60C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i3-6100U
Max CPU frequency
2.3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
SATA 3
2
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 4xRJ45, 4xUSB, Line Out, Display Port
System Power Input
Input Voltage DC
10..36 V
Software
Operating System Compatibility
Windows 7, Linux OS, Windows 10
Dimensions and weight
Width
200 mm
Height
140 mm
Depth
40 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Vibration
Operating, IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)
Shock
Operating, IEC 60068-2-27, 50G, half sine, 11 ms
Standards and Certifications
Certifications
CE, FCC
Safety
CCC, UL, BSMI
Dimensions
Net Weight
3 kg
Gross Weight
3.2 kg
