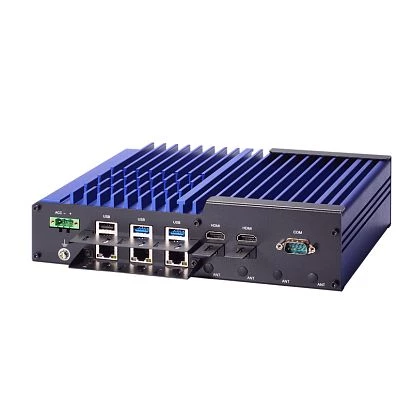

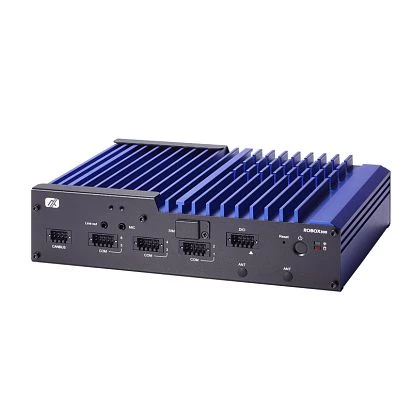

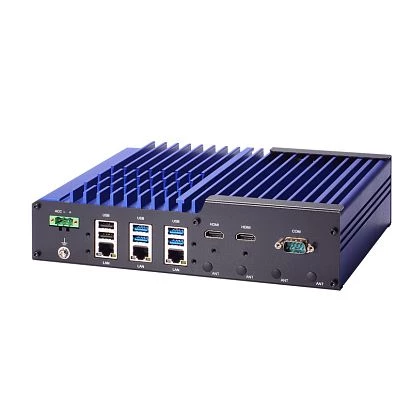

ROBOX300
ROS 2 AMR Controller, Intel Core i5-1145G7E, 2xSODIMM DDR4, 2xHDMI, 3x2.5GbE LAN, 7xCOM, 6xUSB, M.2 Key M 2280, M.2 Key E 2230, PCIe Mini Card Slot, 2xCAN bus, GPIO, 9...60VDC, -40...+60C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Max CPU frequency
4.1 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
9
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Drive interfaces
M.2
1
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2230 E
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, 2xHDMI, 3xRJ45, 6xUSB, Mic In, Line Out, 6xCOM (terminal block), GPIO (terminal block), 2xCAN (terminal block)
System Power Input
Input Voltage DC
9..60 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu 20.04
Dimensions and weight
Width
250 mm
Height
170 mm
Depth
62 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.9 kg
Gross Weight
6.33 kg
