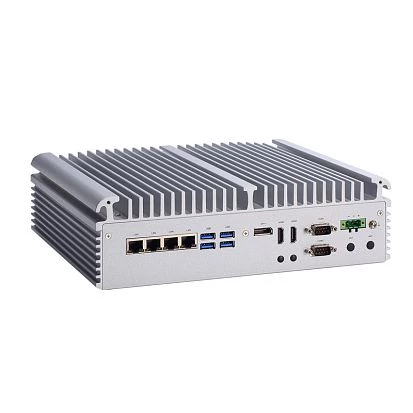

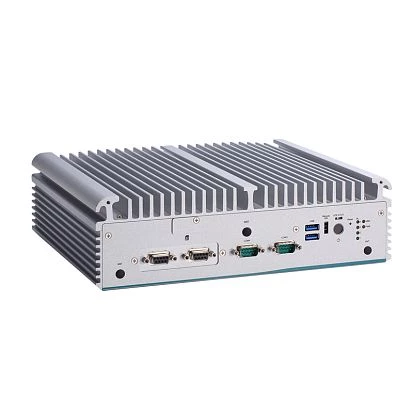

eBOX671B-ALD-GbE
AXIOMTEK
SKU: 10253300
Fanless embedded system with supporting Intel Core i9/i7/i5/i3 13th/12th Gen, Intel R680E, DDR5, 2xHDMI, DP, 3x2.5GbE LAN, 1xGbE LAN, 4xCOM, 6xUSB 3.2, 2x2.5" SATA, M.2 Key M 2280, M.2 Key E 2230, M.2 Key B 3052, SIM, 1xMXM 3.1, 9-36VDC-in
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, 2xHDMI, 2xDisplayPort
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
4
10/100/1000 Mbit/s
4
2,5 Gbit/s
3
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB v3.x
6
Audio
Audio Controller
Intel HD Audio
Drive interfaces
SATA 3
2
RAID Levels
1
M.2
1
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
5
M.2
3
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
AT/ATX Switch
Connectors
Connectors
4xDB9, 2xHDMI, 4xRJ45, 6xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows 10, Windows 11
Dimensions and weight
Width
280 mm
Height
80.5 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-40..65 °C
Humidity
10-90%
Vibration
3 Grms, 5...500 Гц, X, Y, Z оси
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.2 kg
Gross Weight
5 kg
