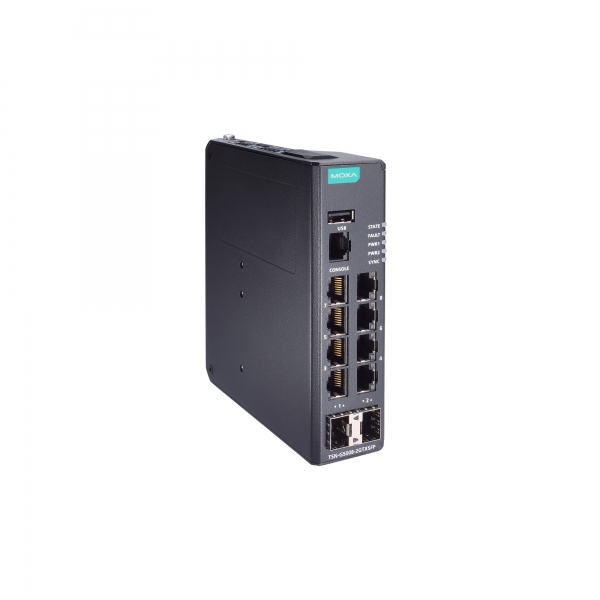

TSN-G5008-2GTXSFP
MOXA
SKU: 09007700
Full Gigabit Managed Ethernet switchh 6 x 10/100/1000BaseT(X) ports, and 2 combo ports (RJ-45 + SFP), TSN, -10C to 60C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
6
Type 10/100/1000 Mbit/s
2xCombo (RJ-45 or SFP), 6xRJ-45
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification, Security features based on IEC 62443, Trusted Access Control, Supports network management system
MAC Table Size
9000
Packet Buffer Size
4 kBit
Max. Number of VLANs
256
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, TFTP, ARP, NTP Server/Client, SNMP Inform, Private MIB, SNMP Trap, SFTP
Reservation protocols
STP, RSTP
Security Protocols
HTTPS, SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
1
Level of Logic "0"
-30~3 V
Level of Logic "1"
10~30 V
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45), USB type A
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
36 mm
Depth
115 mm
Height
135 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55032, EN 55035
Safety
UL 61010-2-201, EN 62368-1 (LVD)
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.44 kg
Gross Weight
0.9 kg
