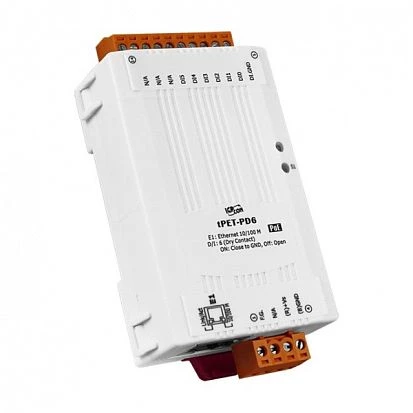

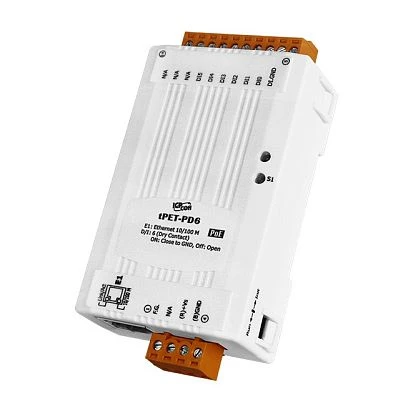

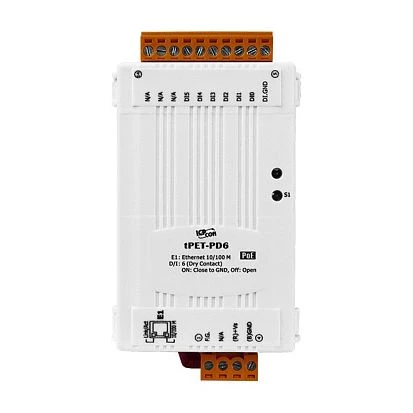

tPET-PD6

tPET-PD6

ICP DAS
SKU: 66377900
Tiny Ethernet module with PoE, and 6-ch DI (Dry Contact) (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
6
Type
Dry contact
Sink/Source
Source
Counter
3.5KHz, 32 bit
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
