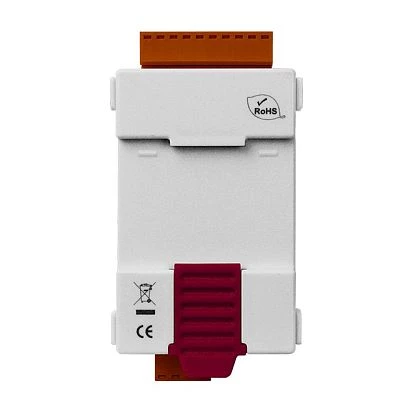

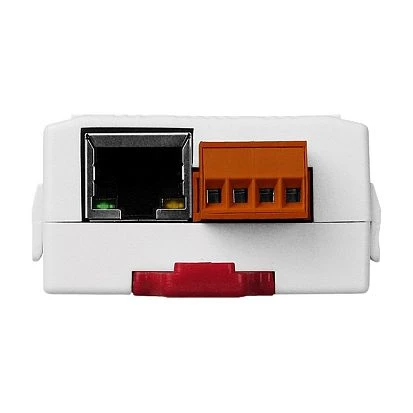

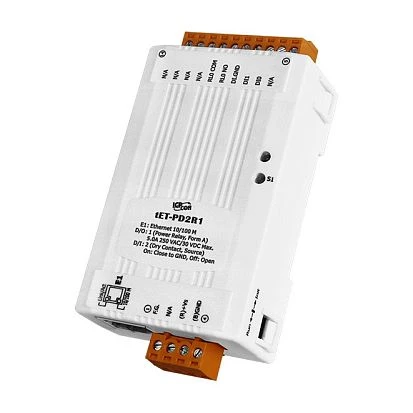

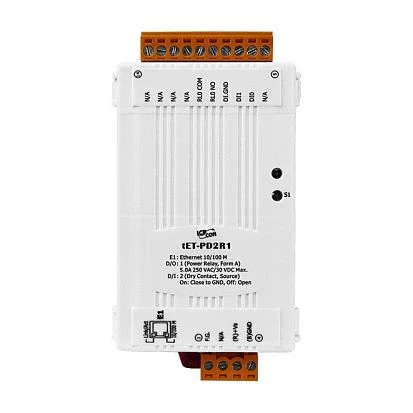

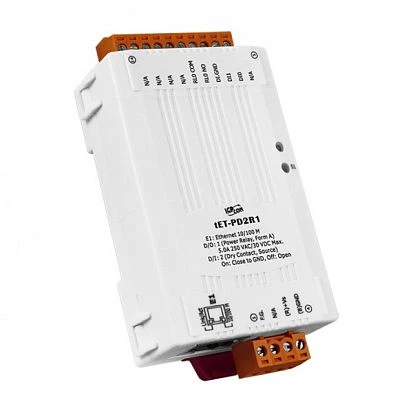

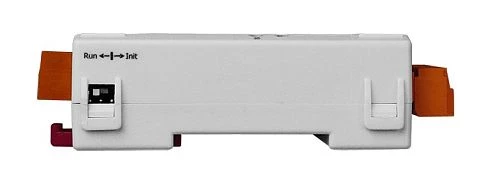

tET-PD2R1

tET-PD2R1

ICP DAS
SKU: 66378000
Tiny Ethernet module 2-ch DI (Dry Contact) and 1-ch Form-A relay (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
2
Type
Dry contact
Sink/Source
Source
Counter
3.5KHz, 32 bit
Digital Output
Total channels of digital output
1
Type
Electromagnitic relay
Relay (Form A)
1
Contact rating of relay (Form A)
5A@250V AC, 5A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Gross Weight
0.3 kg
