tPET-PD2POR2

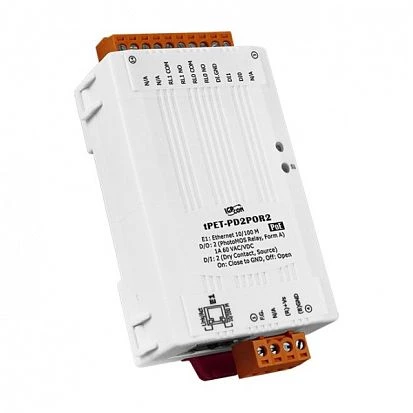

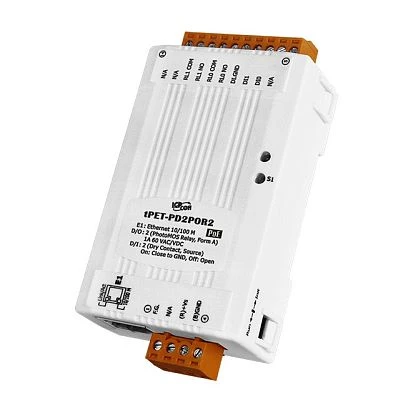

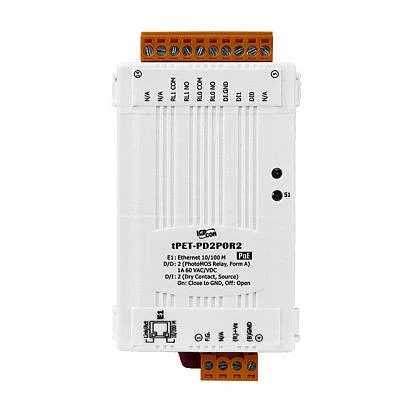

tPET-PD2POR2

ICP DAS
SKU: 66378300
Tiny Ethernet module with PoE, 2-ch DI (Dry Contact) and 2-ch Form-A PhotoMos relay (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
1
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server
Digital Input
Total channels of digital input
2
Type
Dry contact
Counter
3.5KHz, 32 bit
Digital Output
Total channels of digital output
2
Type
PhotoMos relay
Relay (Form A)
2
Contact rating of relay (Form A)
1A@60V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
PoE
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
98 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.1 kg
Gross Weight
0.1 kg
