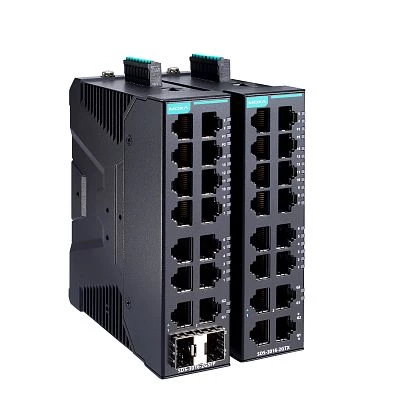

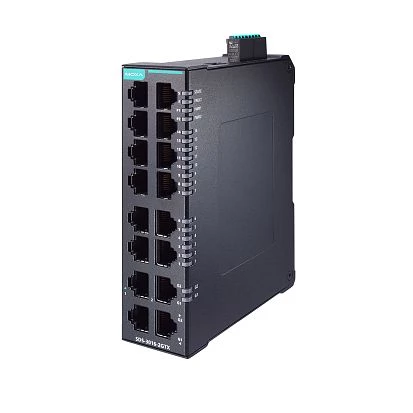

SDS-3016-2GTX
MOXA
SKU: 09257100
Smart Managed Ethernet switch with 14 10/100BaseT(X) ports, 2 10/100/1000BaseT(X) ports, and -10 to 60C operating temperature, dual power supply 12/24/48 VDC
Price on request
Available
Available
Ethernet
Total Ethernet
16
10/100 Mbit/s
14
Type 10/100 Mbit/s
14xRJ-45
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
2xRJ-45
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Broadcast Storm Protection, Flow Control, Back pressure flow control, Security features based on IEC 62443
MAC Table Size
8000
Packet Buffer Size
3 kBit
Max. Number of VLANs
8
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Managment Protocols
SNMPv1/v2c/v3, LLDP, Syslog, VLAN, SNTP, NTP Server/Client, SNMP Inform
Reservation protocols
STP, RSTP
Security Protocols
HTTPS
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Input
Total channels of digital input
1
Type
Wet contact
Level of Logic "0"
-30~3 V
Level of Logic "1"
13~30 V
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
Web-interface, ABC-configurator
Connectors
Connectors
USB type A
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
36 mm
Depth
111 mm
Height
135 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
UL 61010-2-201, EN 62368-1 (LVD)
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
0.85 kg
Ethernet
