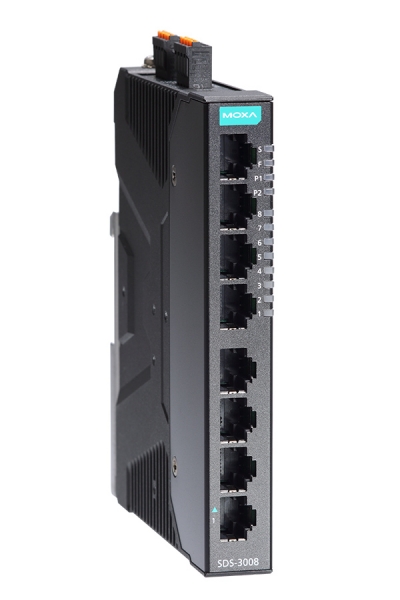

SDS-3008
MOXA
SKU: 07398900
Compact industrial smart Ethernet switch system with 8-port of fast Ethernet interfaces, -10 to 60?C operating temperature, dual 12/24/48VDC power inputs
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Security features based on IEC 62443
MAC Table Size
8000
Packet Buffer Size
3 kBit
Max. Number of VLANs
8
Supported Protocols
Industrial Protocols
EtherNet/IP, PROFINET, Modbus TCP
Managment Protocols
SNMPv1/v2c/v3, LLDP, Syslog, SNTP, DHCP Client, NTP Server/Client
Reservation protocols
STP, RSTP
Security Protocols
HTTPS
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Input
Total channels of digital input
1
Level of Logic "0"
-30~3 V
Level of Logic "1"
13~30 V
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
Web-interface
Connectors
Connectors
USB type A
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP40
Dimensions and weight
Width
20 mm
Depth
111 mm
Height
135 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4
Rolling Stock
EN 50121-4
Safety
UL 508, EN 60950-1, UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
0.59 kg
