RUGGEDCOM-RSG920PNC

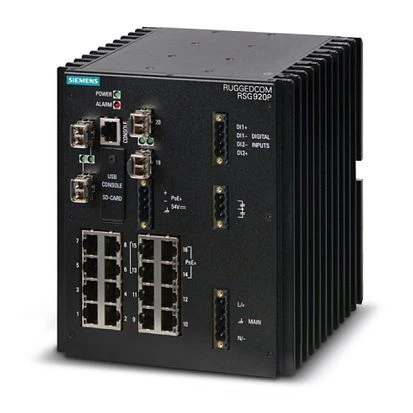

RUGGEDCOM-RSG920PNC

Siemens AG
SKU: 56647200
RUGGEDCOM RSG920PNC Industrial Managed Layer 2 Ethernet Switch, IP40, 16x10/100/1000Base-X ports, support 4xSFP and 4xPoE, 56-bit Encryption, 9..60VDC or 88..264 VAC / 98..300 VDC, Wide Temp. -40..85C
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
4
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMP
Security Protocols
HTTPS, SSH, RADIUS, SSL
Connectors
Connectors
Console Port USB, MicroSD card slot
System Power Input
Input Voltage DC
44..57 V
Input Voltage AC
85..264 V
Construction
Mounting Configuration
DIN-Rail mount
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
FCC Class A
EMS
CISPR 22
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
4.7 kg
Gross Weight
5.3 kg
Ethernet
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
4
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMP
Security Protocols
HTTPS, SSH, RADIUS, SSL
Connectors
Connectors
Console Port USB, MicroSD card slot
System Power Input
Input Voltage DC
44..57 V
Input Voltage AC
85..264 V
Construction
Mounting Configuration
DIN-Rail mount
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
FCC Class A
EMS
CISPR 22
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
4.7 kg
Gross Weight
5.3 kg
Ethernet
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
4
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMP
Security Protocols
HTTPS, SSH, RADIUS, SSL
Connectors
Connectors
Console Port USB, MicroSD card slot
System Power Input
Input Voltage DC
44..57 V
Input Voltage AC
85..264 V
Construction
Mounting Configuration
DIN-Rail mount
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
FCC Class A
EMS
CISPR 22
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
4.7 kg
Gross Weight
5.3 kg
Ethernet
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
4
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMP
Security Protocols
HTTPS, SSH, RADIUS, SSL
Connectors
Connectors
Console Port USB, MicroSD card slot
System Power Input
Input Voltage DC
44..57 V
Input Voltage AC
85..264 V
Construction
Mounting Configuration
DIN-Rail mount
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
FCC Class A
EMS
CISPR 22
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
4.7 kg
Gross Weight
5.3 kg

Documentation
RUGGEDCOM-RSG920PNC-Datasheet.pdf
Documentation
RUGGEDCOM-RSG920PNC-Datasheet.pdf
Documentation
RUGGEDCOM-RSG920PNC-Datasheet.pdf
Documentation
RUGGEDCOM-RSG920PNC-Datasheet.pdf
