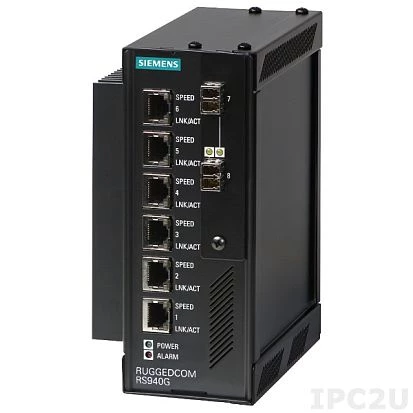

RUGGEDCOM-RS940G
Siemens AG
SKU: 56128500
RUGGEDCOM RS940G Industrial Managed Ethernet Layer 2 Switch, IP40, 6x10/100/1000 Base-TX ports, optional 2x10/100/1000 Base-X ports, 128-bit Encryption, 24/48 VDC or 88..300 VDC / 85..264 VAC , Wide Temp. -40..85C
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100/1000 Mbit/s
6
Type 10/100/1000 Mbit/s
6xRJ-45
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, TFTP, IGMP, DHCP Client
Security Protocols
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
System Power Input
Input Voltage DC
18..36 V
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
Power Automation
IEC 61850-3
Safety
EN 60950, UL, CSA
Dimensions
Net Weight
0.92 kg
Gross Weight
1.2 kg
