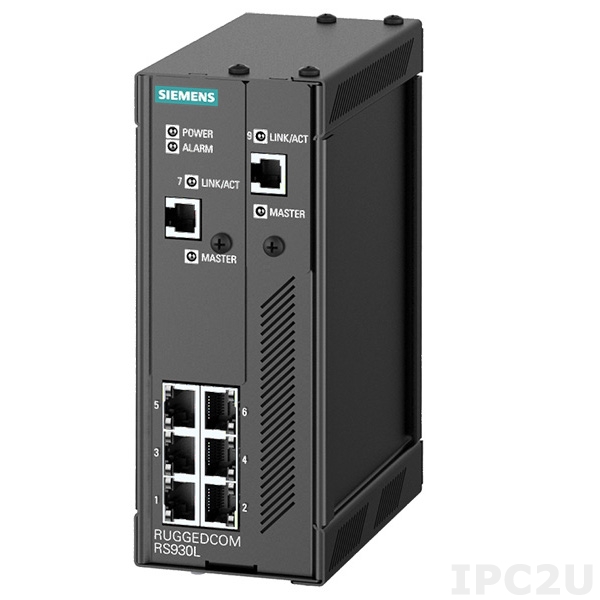

RUGGEDCOM-RS930L
Siemens AG
SKU: 56133600
RUGGEDCOM RS930L Industrial Managed Layer 2 Ethernet Switch, IP30, 6x10/100Base-TX ports, 2xVDSL Interfaces up to 5km, 128-bit Encryption, 24/48VDC or 88..300 VDC / 85..264 VAC, Wide Temp. -40..85C
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
6xRJ-45
Switch Properties
Managed
Yes
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, IGMP, DHCP Client
Security Protocols
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55022, FCC Part 15 Subpart B Class A
Power Automation
IEC 61850-3, IEEE 1613
Automotive
NEMA TS2
Safety
EN 60950, UL, CSA
Dimensions
Net Weight
0.92 kg
Gross Weight
1.22 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
6xRJ-45
Switch Properties
Managed
Yes
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, IGMP, DHCP Client
Security Protocols
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55022, FCC Part 15 Subpart B Class A
Power Automation
IEC 61850-3, IEEE 1613
Automotive
NEMA TS2
Safety
EN 60950, UL, CSA
Dimensions
Net Weight
0.92 kg
Gross Weight
1.22 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
6xRJ-45
Switch Properties
Managed
Yes
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, IGMP, DHCP Client
Security Protocols
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55022, FCC Part 15 Subpart B Class A
Power Automation
IEC 61850-3, IEEE 1613
Automotive
NEMA TS2
Safety
EN 60950, UL, CSA
Dimensions
Net Weight
0.92 kg
Gross Weight
1.22 kg
Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Type 10/100 Mbit/s
6xRJ-45
Switch Properties
Managed
Yes
Supported Protocols
Industrial Protocols
Modbus TCP, DNP3
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, VLAN, SNTP, RMON, IGMP, DHCP Client
Security Protocols
SSH, SSL, TACACS+, IEEE 802.1X Network Access Control
System Power Input
Input Voltage DC
10..36 V
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
66 mm
Depth
127 mm
Height
188 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE/FCC
EMI
EN 55022, FCC Part 15 Subpart B Class A
Power Automation
IEC 61850-3, IEEE 1613
Automotive
NEMA TS2
Safety
EN 60950, UL, CSA
Dimensions
Net Weight
0.92 kg
Gross Weight
1.22 kg
