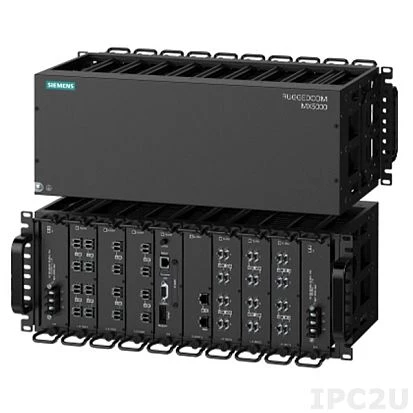

RUGGEDCOM-MX5000

Siemens AG
SKU: 56129200
RUGGEDCOM MX5000 MIL-STD Routing and Switching Layer 2 Platform, up to 96x10/100/1000/10GBase-TX ports, up to 48xCOM, 88..300VDC or 85..264VAC Input Power, Wide Temp. -40..85C
Price on request
Available
Available

System configuration
Price with VAT
Price on request
System configuration
Price with VAT
Price on request

Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, RMON, TFTP, IGMP, DHCP Client
Reservation protocols
STP, RSTP
Security Protocols
IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
LED / Controls
Setup of Operation Mode
Console Port, Web-interface
System Power Input
Input Voltage DC
88..300 V
Input Voltage AC
85..264 V
Construction
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP40
Dimensions and weight
Width
464.8 mm
Depth
302.01 mm
Height
175.26 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE, CISPR 22 Class A, FCC Class A
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
Power Automation
IEC 61850-3
Safety
EN 60950, CSA
Dimensions
Net Weight
5 kg
Gross Weight
5.5 kg
