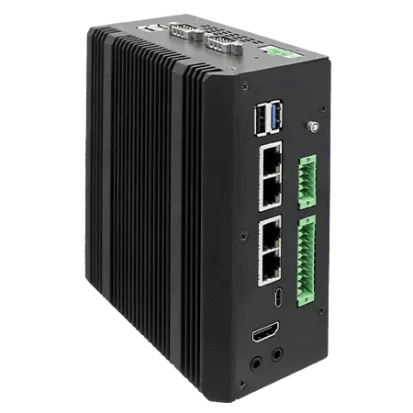

NTDRW100

NTDRW100

Winmate
SKU: 80189800
Fanless DIN-Rail AI Box PC, NVIDIA Jetson Orin Nano 6-core SoC, NVIDIA Ampere 1024-core GPU, 8GB LPDDR5 RAM, 256GB NVME SSD, HDMI, 3xGbE LAN, 1xPoE LAN, 3xUSB 3.2, 1xUSB-C, 1xUSB 2.0, 3xCOM, 16-bit DIO, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC-in with PSU
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin Nano (6-Core)
Socket
CPU onboard
Max CPU frequency
1.7 GHz
Memory
Form-factor
DDR5
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
3
PoE+ 10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-232/422/485
3
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
Channels of DIO
16
Isolation DIO
Yes
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
DB9, HDMI, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DIO (terminal block), 2xCOM (terminal block), USB type C
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
150 mm
Height
68 mm
Depth
130 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE/FCC
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Dimensions
Net Weight
2.5 kg
Gross Weight
3.4 kg

Documentation
NTDRW100-Datasheet.pdf
