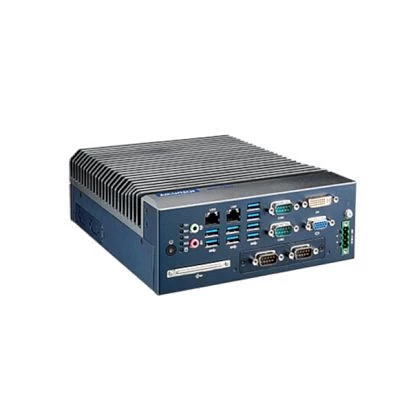

MIC-7500-S9A1E
Advantech
SKU: 07142600
Fanless Embedded System with Intel Core i5-6442EQ 1.9GHz, 4GB DDR4, VGA/DVI, 2xGB LAN, 4xCOM, 8xUSB 3.0, 2xMini-PCIe, 1 x 2.5" HDD, CFast, mSATA, GPIO, Audio, 9...36VDC, -20...60C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i5-6442EQ
Max CPU frequency
2.7 GHz
Chipset
Chipset
Intel QM170 PCH
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD 530 graphics
Ethernet
Controller Type
Intel i210 10/100/1000 Mbps, Intel i219-LM
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
4
RS-232/422/485
2
USB Total
9
USB 2.0
1
USB v3.x
8
Audio
Audio Controller
Intel HD Audio
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DVI, DB15 VGA, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC input (terminal block), CFast slot
System Power Input
Input Voltage DC
9..36 V
Dimensions and weight
Width
192 mm
Height
74 mm
Depth
230 mm
Operating Conditions
Operating Temperature
-20..60 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock
20G, IEC-68-2-27, half-sine wave, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
2.9 kg
Gross Weight
3.9 kg
