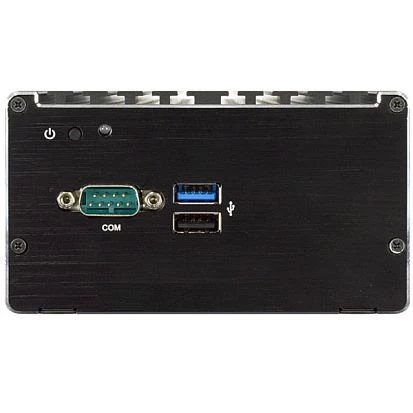

JBC320U93W-2930-B

JBC320U93W-2930-B

JetWay
SKU: 56861500
JetWay Embedded Mini-PC, Intel Celeron N2930 2.16 GHz, up to 8GB DDR3L SODIMM, 2x HDMI, 2xGbit LAN, 3xUSB, 1xCOM, mSATA, WiFi, 12V DC-In, External Power Adapter
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall, Wall VESA 50
CPU
Processor Installed
Intel Celeron N2930
Memory
Default on Board Memory
4 GB
Maximum Memory
8 GB
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB 2.0
3
Storage Cage
2.5" Cage Intenal
1
Connectors
Connectors
DB15 VGA, 2xHDMI, 2xRJ45, 4xUSB, Mic In, Line Out, 2xSMA
Power Supply
Output Power
36 W
Dimensions and weight
Width
116 mm
Height
65 mm
Depth
110 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Gross Weight
1.3 kg

Documentation
JBC320U93-Datasheet.pdf
