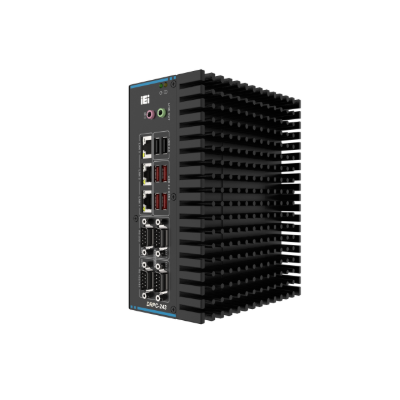

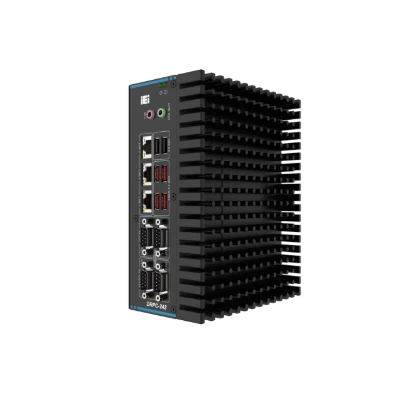

DRPC-243-MTL-U5AD
IEI
SKU: 80288500
Rugged Embedded System, Intel Core Ultra 5 125U CPU, 16GB DDR5 RAM, HDMI, DP, 3x2.5Gbit LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xUSB 4 Type-C, 1x2.5" Drive Bay, 1xM.2 2280 Key-M, 1xM.2 3042/3052 Key-B, 1xM.2 2230 Key-A, 1xPCIe x4 Opt., 12-28VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop
Type
Fanless
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 5 125U
Socket
FCBGA2049
Max CPU frequency
4.3 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
16 GB
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI, Type C DP
Ethernet
Controller Type
Intel i226-LM, Intel i226V
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-422/485
2
USB Total
7
USB 2.0
2
USB v3.x
5
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B, 3042 B, 2230 A
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), USB type C
System Power Input
Input Voltage DC
12..28 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
190 mm
Height
81 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
1.6 kg
Gross Weight
2.4 kg
