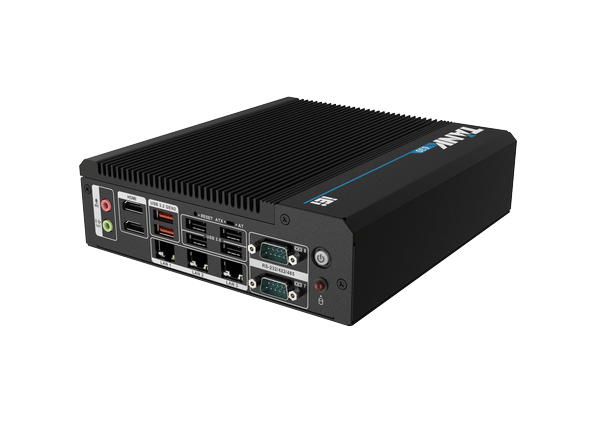

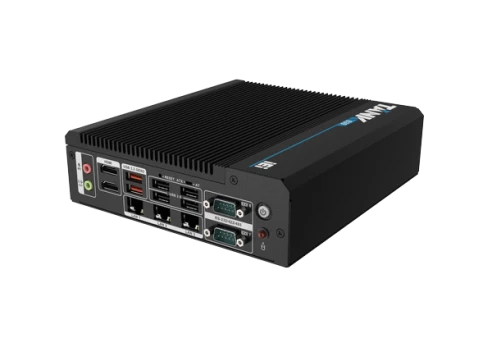

TANK-630-EHL-JC
IEI
SKU: 80288400
Rugged Embedded Box PC, Intel Celeron J6412 CPU, 8GB DDR4 RAM, 2xHDMI, 3x2.5Gbit LAN, 8xCOM, 2xUSB 3.2, 4xUSB 2.0, 12-bit DIO, 1x2.5" Drive Bay, 1xM.2 2280 Key-M, 1xM.2 2042/52/80 Key-B, 1xM.2 2230 Key-A, Audio, 12-28VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration

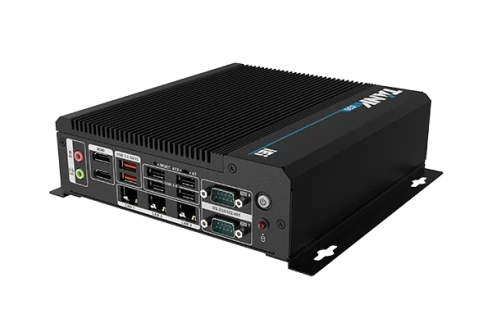

Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Max CPU frequency
2.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i225V, Intel i226V
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
8
RS-232
6
RS-232/422/485
2
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
12
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 3052 B, 3042 B, 2230 A
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors

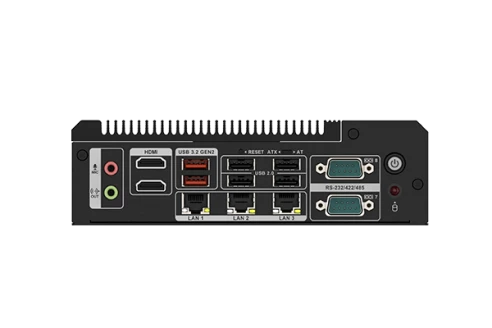

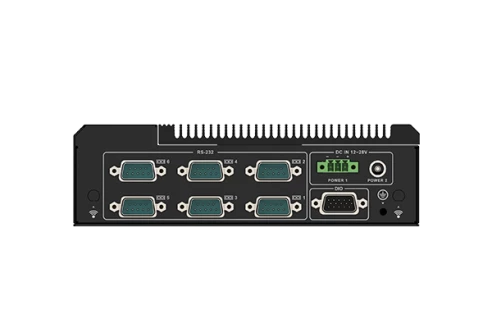

2xHDMI, 3xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, 1xDB15 DIO, DC input (terminal block), 8xDB9
System Power Input
Input Voltage DC
12..28 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
184 mm
Height
53 mm
Depth
200.6 mm
Operating Conditions
Operating Temperature
-10..50 °C
Humidity
10-95%
Vibration
MIL-STD-810G 514.6C-1 (with SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration
Dimensions
Net Weight
2.04 kg
Gross Weight
2.29 kg
