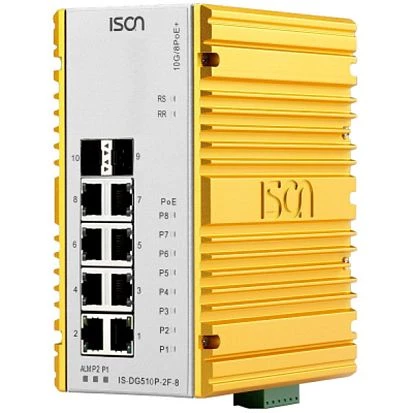

IS-DG510P-2F-8

IS-DG510P-2F-8

ISON
SKU: 56343000
Industrial 10-port DIN-Rail Managed PoE Ethernet switch with 8x 1000 Base-TX and 2x 1000 Base-FX SFP Slot, w/ 8PoE IEEE 802.3af/at, Max. 2 Ultra PoE, 60 Watt, -40...+75 operating temperature, Dual DC
Price on request
Available
Available

Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
Managment Protocols
Syslog, Telnet, UDP, ARP, TCP, RARP, ICMP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
105 mm
Depth
108 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
Managment Protocols
Syslog, Telnet, UDP, ARP, TCP, RARP, ICMP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
105 mm
Depth
108 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
Managment Protocols
Syslog, Telnet, UDP, ARP, TCP, RARP, ICMP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
105 mm
Depth
108 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
Managment Protocols
Syslog, Telnet, UDP, ARP, TCP, RARP, ICMP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
46..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
105 mm
Depth
108 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Rolling Stock
EN 50121-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg

Documentation
IS-DG510P-2F-8-Datasheet
Documentation
IS-DG510P-2F-8-Datasheet
Documentation
IS-DG510P-2F-8-Datasheet
Documentation
IS-DG510P-2F-8-Datasheet
