IS-DG410-2F

ISON
SKU: 56685100

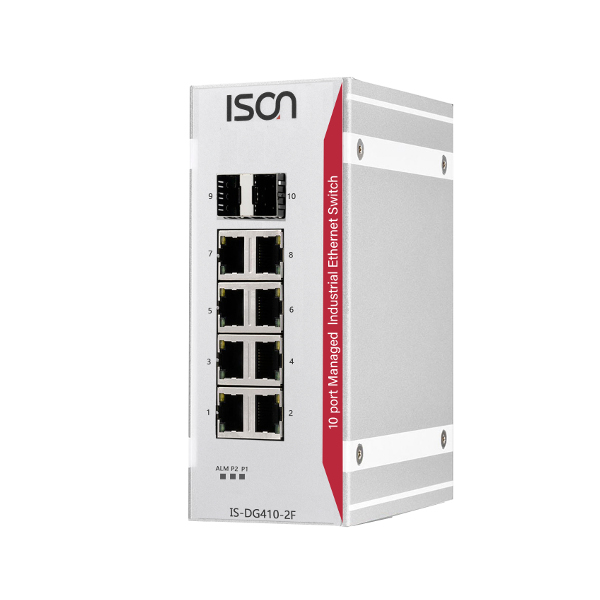

Industrial 10-port Web-Smart Din-Rail Managed Ethernet switch with 8x10/100/1000 BaseT(X) and 2x100/1000 FX/TX Combo ports, -40..+75C operating temperature, Dual 12-58V DC Power Input
Price on request
Available
Available

Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
Supported Protocols
Managment Protocols
Syslog, Telnet, SNMP, TFTP
Security Protocols
SSH
IEEE Standard
IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
