IS-DF409-3F

ISON
SKU: 56675700

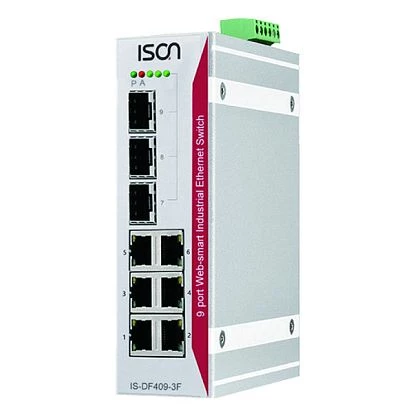

Industrial 9-port Web-Smart Din-Rail Managed Fast Ethernet switch with 6x100 BaseT(X),3x100 SFP, -10...+60C operating temperature, Dual DC 12-58V Power Input
Price on request
Available
Available

Ethernet
Total Ethernet
9
10/100 Mbit/s
6
SFP Fast Ethernet 100 Mbit/s
3
Supported Protocols
Managment Protocols
HTTP, Telnet, SNMP, TFTP
Security Protocols
HTTPS
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Redundant power input
Yes
Input Voltage DC
12..58 V
Power Supply Reserve input Voltage DC
12..58 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
9
10/100 Mbit/s
6
SFP Fast Ethernet 100 Mbit/s
3
Supported Protocols
Managment Protocols
HTTP, Telnet, SNMP, TFTP
Security Protocols
HTTPS
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Redundant power input
Yes
Input Voltage DC
12..58 V
Power Supply Reserve input Voltage DC
12..58 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
9
10/100 Mbit/s
6
SFP Fast Ethernet 100 Mbit/s
3
Supported Protocols
Managment Protocols
HTTP, Telnet, SNMP, TFTP
Security Protocols
HTTPS
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Redundant power input
Yes
Input Voltage DC
12..58 V
Power Supply Reserve input Voltage DC
12..58 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Ethernet
Total Ethernet
9
10/100 Mbit/s
6
SFP Fast Ethernet 100 Mbit/s
3
Supported Protocols
Managment Protocols
HTTP, Telnet, SNMP, TFTP
Security Protocols
HTTPS
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Redundant power input
Yes
Input Voltage DC
12..58 V
Power Supply Reserve input Voltage DC
12..58 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg

Documentation
IS-DF409-Series-Datasheet
Documentation
IS-DF409-Series-Datasheet
Documentation
IS-DF409-Series-Datasheet
Documentation
IS-DF409-Series-Datasheet
