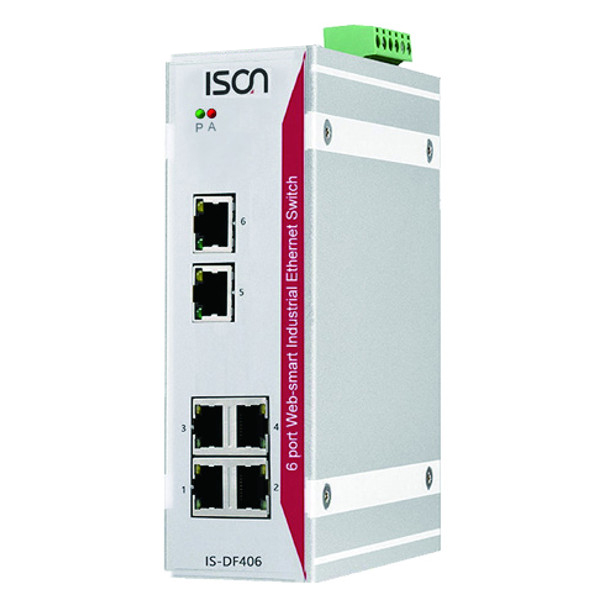

IS-DF406

ISON
SKU: 56675200
Industrial 6-port Web-Smart Din-Rail Managed Ethernet switch with 6 10/100 BaseT(X). -10...+60C operating temperature, Dual DC 12-58V Power Input
Price on request
Available
Available

Ethernet
Total Ethernet
6
10/100 Mbit/s
6
Supported Protocols
Managment Protocols
HTTP, Telnet, SNMP, TFTP
Security Protocols
HTTPS
System Power Input
Redundant power input
Yes
Input Voltage DC
12..58 V
Power Supply Reserve input Voltage DC
12..58 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
