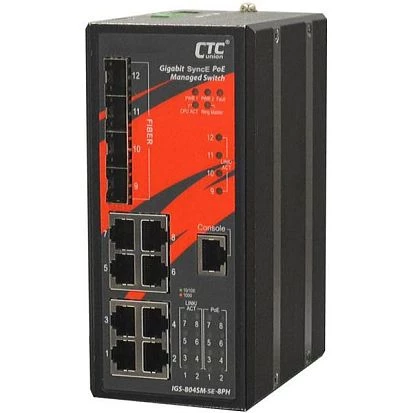

IGS-804SM-SE-8PH

IGS-804SM-SE-8PH

CTC Union
SKU: 56733800
Industrial Managed Gigabit Ethernet Switch with 8x 10/100/1000 Base-T PoE ports, 4x SFP Ports, Redundant Dual 48VDC Input Power, Alarm Relay Contact, -10..+60C Operating Temperature, SyncE, IEEE 1588 PTPv2, EN50121-4, EN61000-6-2, EN61000-6-4
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
4
PoE+ 10/100/1000 Mbit/s
8
Supported Protocols
Managment Protocols
HTTP, Telnet, VLAN
Security Protocols
SSH, SSL
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE
EMI
EN 55024, FCC Part 15
EMS
IEC 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-4, EN 55032
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.82 kg
Gross Weight
1.76 kg
