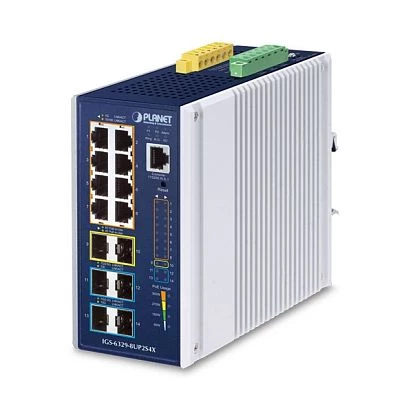

IGS-6329-8UP2S4X
Planet
SKU: 57525600
Industrial Power-over-Ethernet DIN-Rail Managed L3 Switch with 8x10/100/1000 BASE-T PoE++ Ports, 2x100/1000/2500 BASE-X SFP, 4x10G SFP+, 2xDI/O, 95W over 4-pair UTP Solution, Dual redundant DC 48-54V, -40...75C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
OSPF
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3bt for Power over Ethernet

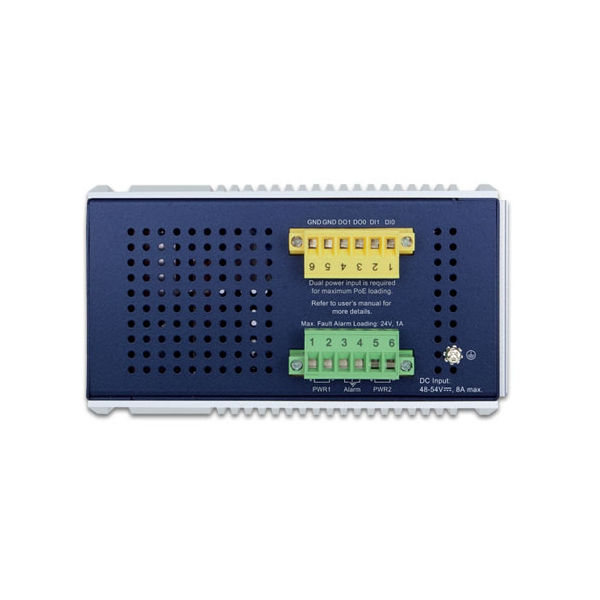

Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Dimensions and weight
Width
76 mm
Depth
152 mm
Height
135 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.61 kg
Gross Weight
2.3 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
OSPF
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3bt for Power over Ethernet
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Dimensions and weight
Width
76 mm
Depth
152 mm
Height
135 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.61 kg
Gross Weight
2.3 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
OSPF
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3bt for Power over Ethernet
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Dimensions and weight
Width
76 mm
Depth
152 mm
Height
135 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.61 kg
Gross Weight
2.3 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
10 kB
Supported Protocols
Protocol Layer 3
OSPF
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3bt for Power over Ethernet
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Dimensions and weight
Width
76 mm
Depth
152 mm
Height
135 mm
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Rolling Stock
EN 50121-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.61 kg
Gross Weight
2.3 kg
