IGS-4215-4P4T

IGS-4215-4P4T

Planet
SKU: 56808100

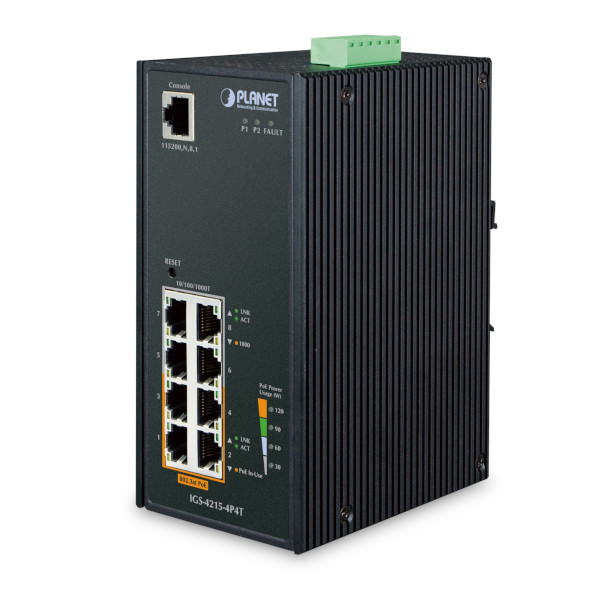

Industrial Power-over-Ethernet DIN-Rail Managed L2+, L4 Switch with 4x1000 802.3at PoE, 4x1000 BaseT, -40...+75C operating temperature, Dual Redundant DC 48-56V Power Input
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
4
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Redundant power input
Yes
Input Voltage DC
48..56 V
Power Supply Reserve input Voltage DC
48..56 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
72 mm
Depth
101 mm
Height
161 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
