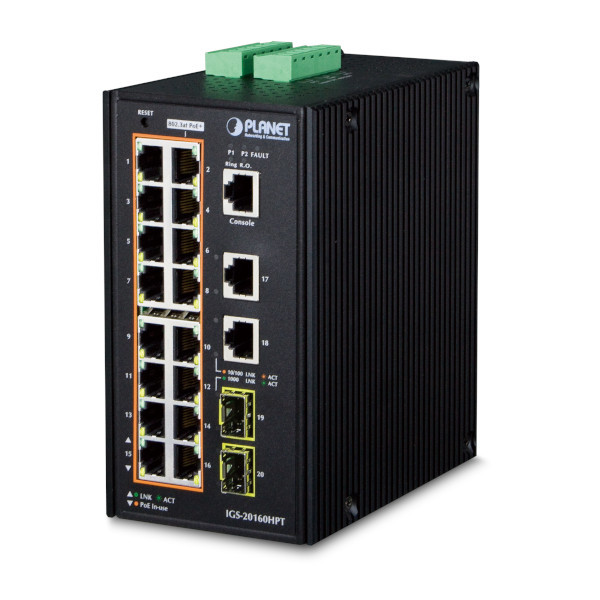

IGS-20160HPT

IGS-20160HPT

Planet
SKU: 56807800
Industrial Power-over-Ethernet DIN-Rail Managed Switch with 16x1000 802.3at PoE, 2x1000X SFP, 2x1000 Base(T), DIDO, ERPS Ring, 1588, ONVIF, -40...+75C operating temperature, Dual DC 48-56V Power Input
Price on request
Available
Available

Ethernet
Total Ethernet
18
10/100/1000 Mbit/s
16
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
System Power Input
Redundant power input
Yes
Input Voltage DC
48..56 V
Power Supply Reserve input Voltage DC
48..56 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
84 mm
Depth
107 mm
Height
153 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.5 kg
Gross Weight
2.1 kg
