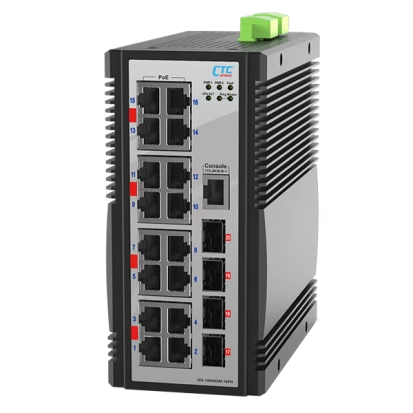

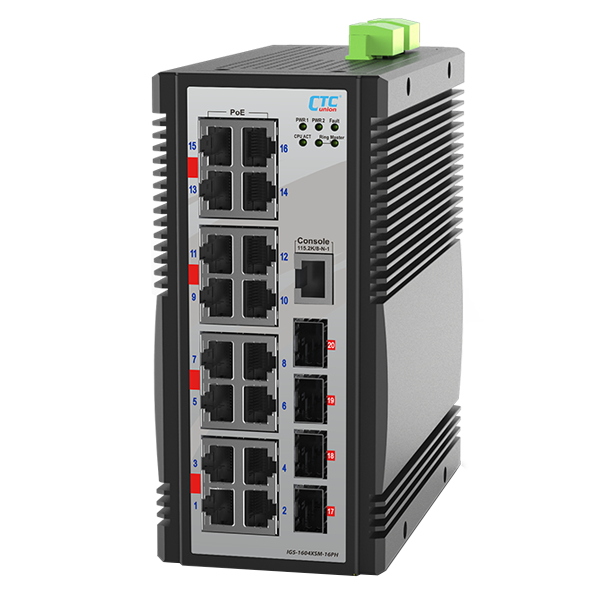

IGS-1604XSM-16PH

CTC Union
SKU: 57512800
Industrial Managed Gigabit Ethernet DIN-rail Switch with 16x1000 Base-T PoE+ 30W Ports, 4x10G SFP Ports, Console, 46..57VDC-In, -40..+60C Operating Temperature
Price on request
Available
Available

Mounting Kit
Price with VAT
Price on request
Mounting Kit
Price with VAT
Price on request

Ethernet
Total Ethernet
20
10 Gbit/s SFP+ Ports
4
PoE+ 10/100/1000 Mbit/s
16
Interfaces
RS-232
1
Switch Properties
Switch Level
Layer 2
MAC Table Size
32000
Packet Buffer Size
4 kBit
Max. Number of VLANs
4094
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Telnet, VLAN, QoS, SNTP, RMON, TFTP, LACP, CoS, IGMPv1/v2/v3
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
IEEE 802.1X Network Access Control
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
LED / Controls
Setup of Operation Mode
Console Port
System Power Input
Redundant power input
Yes
Input Voltage DC
46..57 V
Power Supply Reserve input Voltage DC
46..57 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Operating Conditions
Operating Temperature
-40..60 °C
Vibration
IEC 60068-2-6
Shock
IEC 60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-4
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Rolling Stock
EN 50121-4
Safety
UL 62368-1
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
2 kg
