FSM-510G-2F

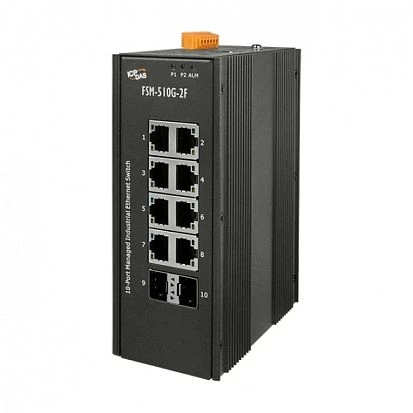

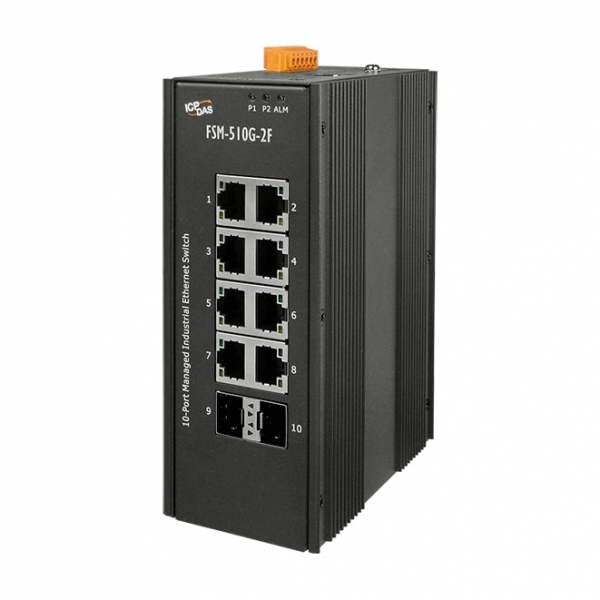

FSM-510G-2F

ICP DAS
SKU: 66424000
8-port 10/100/1000Base-T + 2 (100/1G) SFP L2 Plus Managed Switch
Price on request
Available
Available

Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
8xRJ-45
SFP 100/1000 Mbit/s Ports
2
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
LLDP, Telnet, VLAN, QoS, SNMP, NTP, IGMPv1/v2/v3
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
Console Port RS-232 (RJ-45)

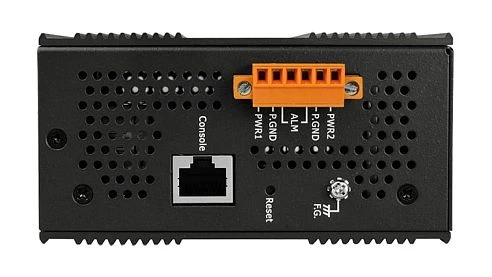

System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
60 mm
Depth
109 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15, CISPR 22 Class
EMS
EN 50121-4, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
1.3 kg
Gross Weight
1.03 kg
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
8xRJ-45
SFP 100/1000 Mbit/s Ports
2
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
LLDP, Telnet, VLAN, QoS, SNMP, NTP, IGMPv1/v2/v3
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
60 mm
Depth
109 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15, CISPR 22 Class
EMS
EN 50121-4, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
1.3 kg
Gross Weight
1.03 kg
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
8xRJ-45
SFP 100/1000 Mbit/s Ports
2
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
LLDP, Telnet, VLAN, QoS, SNMP, NTP, IGMPv1/v2/v3
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
60 mm
Depth
109 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15, CISPR 22 Class
EMS
EN 50121-4, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
1.3 kg
Gross Weight
1.03 kg
Ethernet
Total Ethernet
10
10/100/1000 Mbit/s
8
Type 10/100/1000 Mbit/s
8xRJ-45
SFP 100/1000 Mbit/s Ports
2
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
Managment Protocols
LLDP, Telnet, VLAN, QoS, SNMP, NTP, IGMPv1/v2/v3
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Expansion Module
Supported Module
SFP-1G, SFP-1FE
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
60 mm
Depth
109 mm
Height
154 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15, CISPR 22 Class
EMS
EN 50121-4, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Dimensions
Net Weight
1.3 kg
Gross Weight
1.03 kg

Documentation
FSM-510G Datasheet Userguide FSM-510G Quickstart FSM-510G Web userguide FSM-510G CLI userguide FSM-510G FSM-510G QIG
Documentation
FSM-510G Datasheet Userguide FSM-510G Quickstart FSM-510G Web userguide FSM-510G CLI userguide FSM-510G FSM-510G QIG
Documentation
FSM-510G Datasheet Userguide FSM-510G Quickstart FSM-510G Web userguide FSM-510G CLI userguide FSM-510G FSM-510G QIG
Documentation
FSM-510G Datasheet Userguide FSM-510G Quickstart FSM-510G Web userguide FSM-510G CLI userguide FSM-510G FSM-510G QIG
