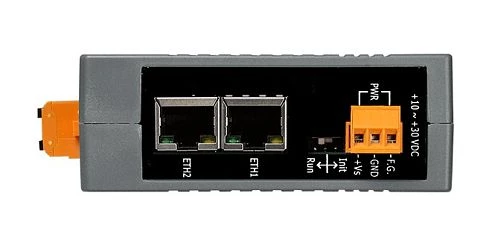

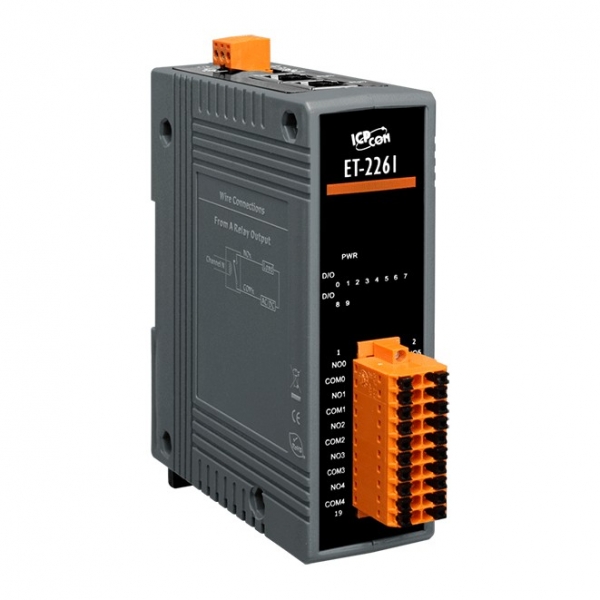

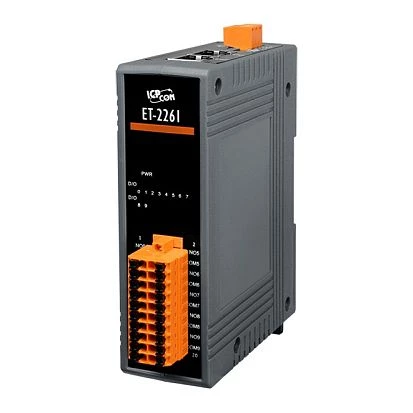

ET-2261

ICP DAS
SKU: 07276500
Ethernet I/O Module with 2-port Ethernet Switch, 10-ch Power Relay Output
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Output
Total channels of digital output
10
Relay (Form A)
10
Contact rating of relay (Form A)
5A@250V AC
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
127 mm
Height
99 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
