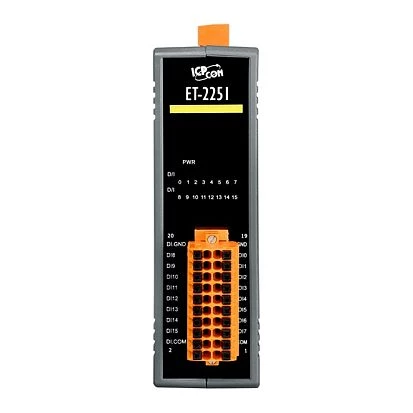

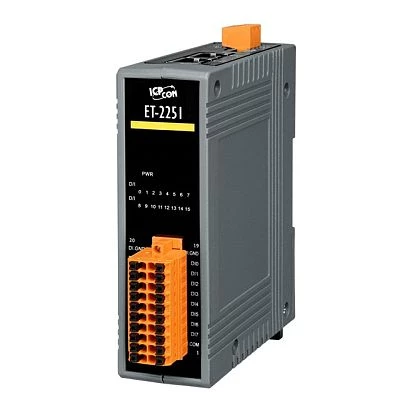

ET-2251
ICP DAS
SKU: 07087700
Ethernet I/O Module with 2-port Ethernet Switch, 16-ch wet contact and dry contact DI (RoHS)
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall

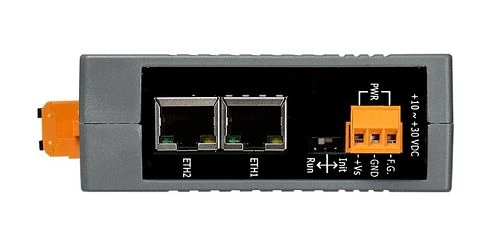

Ethernet
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave
Digital Input
Total channels of digital input
16
Type
Dry contact, Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~50 V
Sink/Source
Sink, Source
Isolation of Digital Input
3000 V
Counter
3KHz
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
127 mm
Height
99 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
