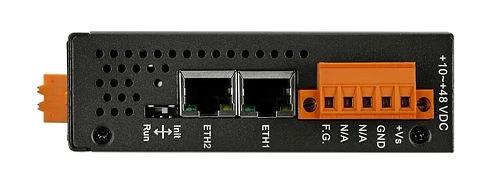

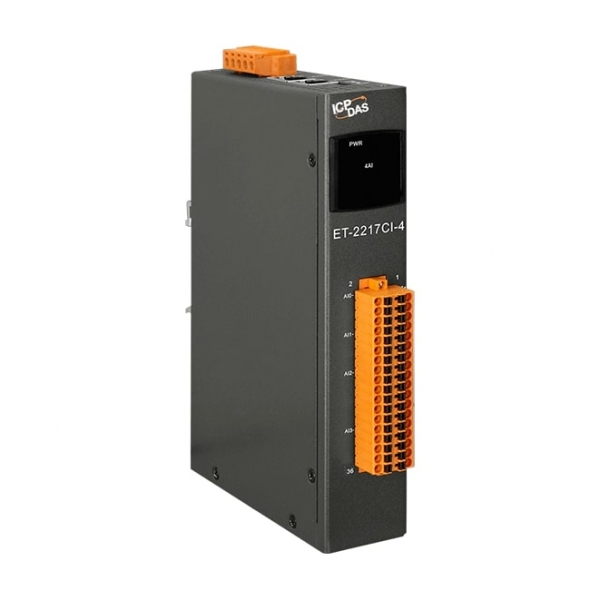

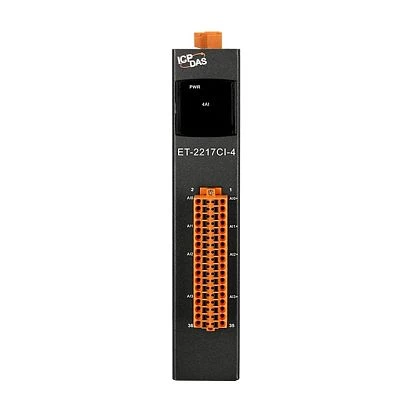

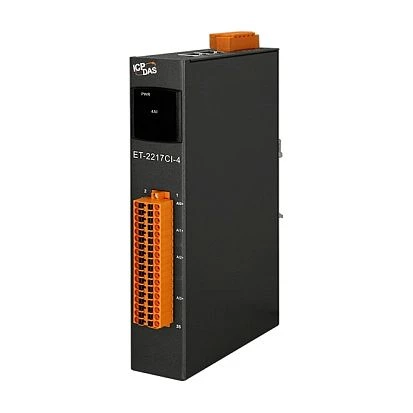

ET-2217CI-4
ICP DAS
SKU: 09595700
Ethernet I/O Module with 2-port Ethernet Switch, 4-ch Analog Inputs with Channel-to-Channel Isolation (RoHS), 10-48VDC
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Ethernet
10/100 Mbit/s
2
Additional Functions
Watchdog timer type
Hardware, Software
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus UDP slave, MQTT client
Analog Input
Total channels of analog input
4
Number of Bits
16 Bit
Voltage range
+/-1 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Sampling rate
10 Hz
Differential channels
4
System Power Input
Input Voltage DC
10..48 V
Dimensions and weight
Width
33 mm
Depth
130 mm
Height
176 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.2 kg
Gross Weight
0.25 kg
