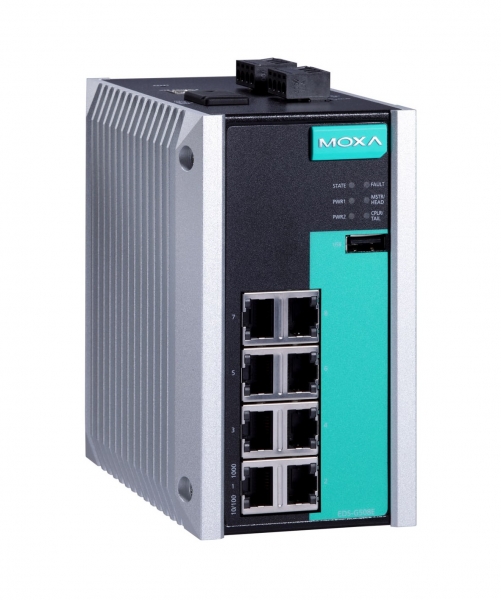

EDS-G508E

Gigabit Ethernet switch EDS-G508E is designed for active industrial operation and is provided for deployment of high speed redundant highway networks using a twisted pair. The key feature of the managed switch is 8 10/100/1000 Mbit/s ports. This allows a user to use the device for both connection to terminal devices, and integration of servers. The use of Gigabit technology ensures high throughput by parallel transmission of data packets, sound and video. EDS-G508E switch from MOXA: description and features: In addition to Ethernet/IP and Modbus TCP industrial protocols, the device provides simultaneous support of Profinet. There are own unique redundancy protocols (Turbo Ring, Turbo Chain) with minimum recovery time (20 ms). The device design provides a USB console, a storage drive and a port for configuration and saving of the settings. A new web interface facilitates the setup process greatly. There is automatic alerting on connection disruptions and power failures. There are new security and compliance certificates (NEMA TS2, EN50121-4, C1D2/ATEX, DNV, GL, LR, ABS NK). They secure protection against static discharges (8 KV at a direct contact and 15 KV over the air), vibration protection (5G), and stable connection under impulse interference. Power consumption is minimum and equals to 0.33 A at 24 V only. The required power is under 8 W. The device is provided in a metal chassis (79х135х137), weighing 1.4 kg and is well protected from dust and condensate. Mean time between failures: 809 thousand hours. EDS-G508E supports most of protocols of management, filtration and time synchronization, so that a user has no problems with compatibility with terminal devices of any manufacturer, which is especially important when constructing scalable secured systems for rebroadcast and receipt. Moreover, the Turbo Ring technology provides unique opportunity for reconfiguration with minimum time and money spent, as there is no need to reset or replace the equipment. Thanks to the high-level protection, the managed Gigabit switch becomes a universal solution, if based on abilities/quality/price ratio.
