EDS-516A-MM-ST
MOXA
SKU: 03575600

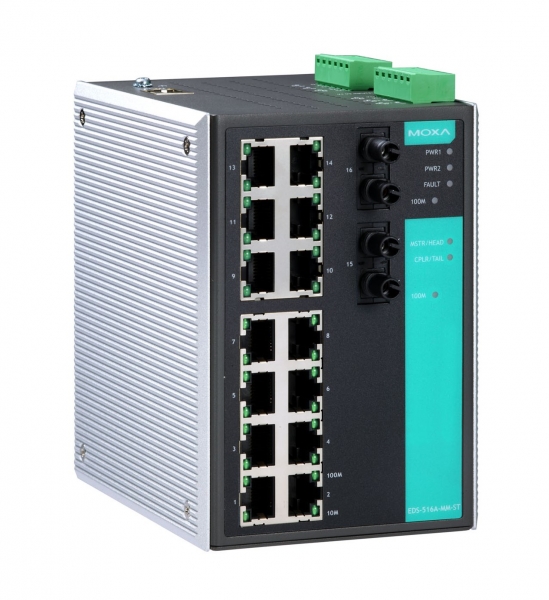

Industrial Managed Redundant Ethernet Switch with 14x 10/100 BaseTx Ports, 2x Multi Mode 100 BaseFX Ports, ST Type Connectors
Price on request
Available
Available
Layer 2 managed switch EDS-516A-MM-ST features 16 communication ports, two of which secure stable communication at the distance of up to 5 km over a multi-mode optic fiber cable. Moreover, there are 2 discrete input channels for integration of digital sensors with IP-networks, and 2 relay outputs for alarm notifications. Such configuration makes the model perfect for integration of numerous industrial devices into large-scale industrial networks. 16-port Ethernet switch EDS-516A-MM-ST by MOXA: description and features: Industrial standard: IPv6. Compatible with the following protocols: EtherNet/IP, Modbus/TCP. Multi-level management and pro-active monitoring: SNMPv3, RMON. Communication modes: Full Duplex, Half Duplex. Multi-mode ports provide access to remote highway channels and allow performing redundancy on a physical layer. Distance: up to 5 km. Wave length: 1300 nm. Intelligent functions: VLAN, GVRP (simplified planning), QoS (prioritizing), 1588 PTPv2 (synchronization), IGMP, GMRP, LACP (traffic optimization), DHCP82 (IP address policies). TACACS+, 802.1X, HTTPS, SSH protocols ensure integrity, user authentication, data encryption and protect from the external attacks. There is a multi-level password system and selective MAC address locking. The device also provides alternative configuration modes: web browser, command line interface (CLI), Telnet/Serial console, Windows utility, ABC-01 system configurator, port mirroring. The dual power input provides uninterruptible power supply (12…45 V DC). The metal fanless chassis that rates IP30 protects the electronic components from shocks and vibrations. Dimensions: 94х135х143. Mean time between failures (MTBF) is around 30 years. The powerful communication parameters of EDS-516A-MM-ST and advantages of optical connection condition the price of the device. The unique Turbo Ring and Turbo Chain redundancy protocols allow design various ring topologies with minimum recovery time: 20 ms for 250 nodes. High level protection of the device in confirmed by numerous international certificates.
Layer 2 managed switch EDS-516A-MM-ST features 16 communication ports, two of which secure stable communication at the distance of up to 5 km over a multi-mode optic fiber cable. Moreover, there are 2 discrete input channels for integration of digital sensors with IP-networks, and 2 relay outputs for alarm notifications. Such configuration makes the model perfect for integration of numerous industrial devices into large-scale industrial networks. 16-port Ethernet switch EDS-516A-MM-ST by MOXA: description and features: Industrial standard: IPv6. Compatible with the following protocols: EtherNet/IP, Modbus/TCP. Multi-level management and pro-active monitoring: SNMPv3, RMON. Communication modes: Full Duplex, Half Duplex. Multi-mode ports provide access to remote highway channels and allow performing redundancy on a physical layer. Distance: up to 5 km. Wave length: 1300 nm. Intelligent functions: VLAN, GVRP (simplified planning), QoS (prioritizing), 1588 PTPv2 (synchronization), IGMP, GMRP, LACP (traffic optimization), DHCP82 (IP address policies). TACACS+, 802.1X, HTTPS, SSH protocols ensure integrity, user authentication, data encryption and protect from the external attacks. There is a multi-level password system and selective MAC address locking. The device also provides alternative configuration modes: web browser, command line interface (CLI), Telnet/Serial console, Windows utility, ABC-01 system configurator, port mirroring. The dual power input provides uninterruptible power supply (12…45 V DC). The metal fanless chassis that rates IP30 protects the electronic components from shocks and vibrations. Dimensions: 94х135х143. Mean time between failures (MTBF) is around 30 years. The powerful communication parameters of EDS-516A-MM-ST and advantages of optical connection condition the price of the device. The unique Turbo Ring and Turbo Chain redundancy protocols allow design various ring topologies with minimum recovery time: 20 ms for 250 nodes. High level protection of the device in confirmed by numerous international certificates.
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
2xST, 14xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2.12 kg
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
2xST, 14xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2.12 kg
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
2xST, 14xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2.12 kg
Ethernet
Total Ethernet
16
10/100 Mbit/s
16
Type 10/100 Mbit/s
2xST, 14xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Line-Swap Fast Recovery, Supports network management system
MAC Table Size
8000
Packet Buffer Size
2 kBit
Max. Number of VLANs
64
Priority Queues
4
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, VLAN, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
Telnet, Console Port, By Switches, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port RS-232 (RJ-45)
System Power Input
Redundant power input
Yes
Input Voltage DC
12..45 V
Power Supply Reserve input Voltage DC
12..45 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
94 mm
Depth
142.7 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL
Safety
UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
2.12 kg
