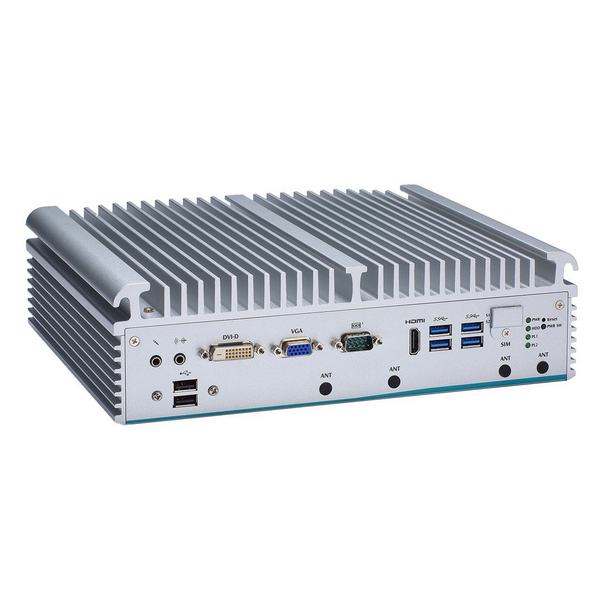

eBOX671-517-FL-DC

eBOX671-517-FL-DC

AXIOMTEK
SKU: 08340700
Fanless embedded system with supporting Intel Core i7/i5/i3 6-7th Gen, Intel Q170, DDR4 SO-DIMM up to 32GB, VGA, DVI-D, HDMI, 8xGigabit PoE IEEE 802.3af, 2xCOM, 4xUSB 3.0, 2xUSB 2.0, 2x2.5" SATA HD BaysD, mSATA, 24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, DVI, DB15 VGA, HDMI, 8xRJ45, 6xUSB, DIO (terminal block), 2xSIM Card Slot
System Power Input
Input Voltage DC
24 V
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
79.6 mm
Depth
210 mm
Operating Conditions
Operating Temperature
-40..50 °C
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.5 kg
Gross Weight
5.5 kg
