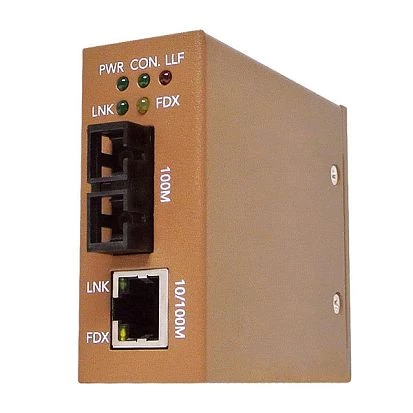

DS101-M-SC-2

DS101-M-SC-2

WoMaster
SKU: 57613700
Indastrial Ethernet Switch, 1x10/100Base-TX, 1 SC Multimode 2KM, 10..60VDC, -40..75 C Operating Temperature
Price on request
Available
Available

Ethernet
10/100 Mbit/s
1
Type 10/100 Mbit/s
SC
Fiber
Type of Fibre Optic
multi-mode
Length Wave RX/TX
1310 nm
Switch Properties
Packet Buffer Size
128 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP40
Dimensions and weight
Width
30 mm
Depth
81.7 mm
Height
70.5 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
EN 50121-4, IEC 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.2 kg
Gross Weight
0.29 kg
