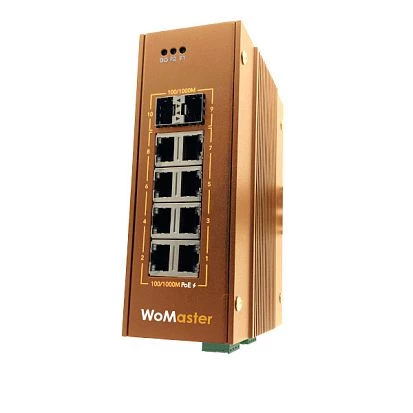

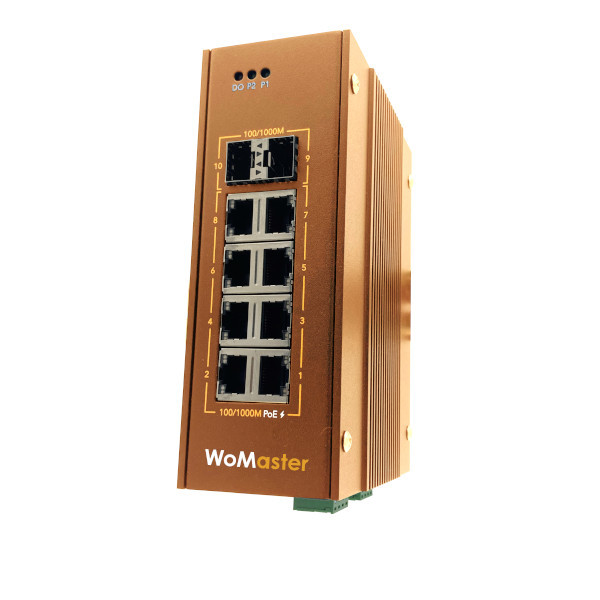

DP410L-LV
WoMaster
SKU: 57601500
Industrial PoE Switch, 8x100/1000Base-T, 2x100/1000Base SFP, 8xPoE, DB9, 12..57VDC, -40..70 C Operating Temperature
Price on request
Available
Available
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
4000
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
78 mm
Depth
125 mm
Height
155 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
IEC 60950-1, IEC 62368-1
Dimensions
Net Weight
0.99 kg
Gross Weight
1.51 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
4000
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
78 mm
Depth
125 mm
Height
155 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
IEC 60950-1, IEC 62368-1
Dimensions
Net Weight
0.99 kg
Gross Weight
1.51 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
4000
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
78 mm
Depth
125 mm
Height
155 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
IEC 60950-1, IEC 62368-1
Dimensions
Net Weight
0.99 kg
Gross Weight
1.51 kg
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Interfaces
RS-232
1
Switch Properties
MAC Table Size
4000
Supported Protocols
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
78 mm
Depth
125 mm
Height
155 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety
IEC 60950-1, IEC 62368-1
Dimensions
Net Weight
0.99 kg
Gross Weight
1.51 kg
